Ignition Key Reminder Tone Alarm < Vehicle Without Kos >

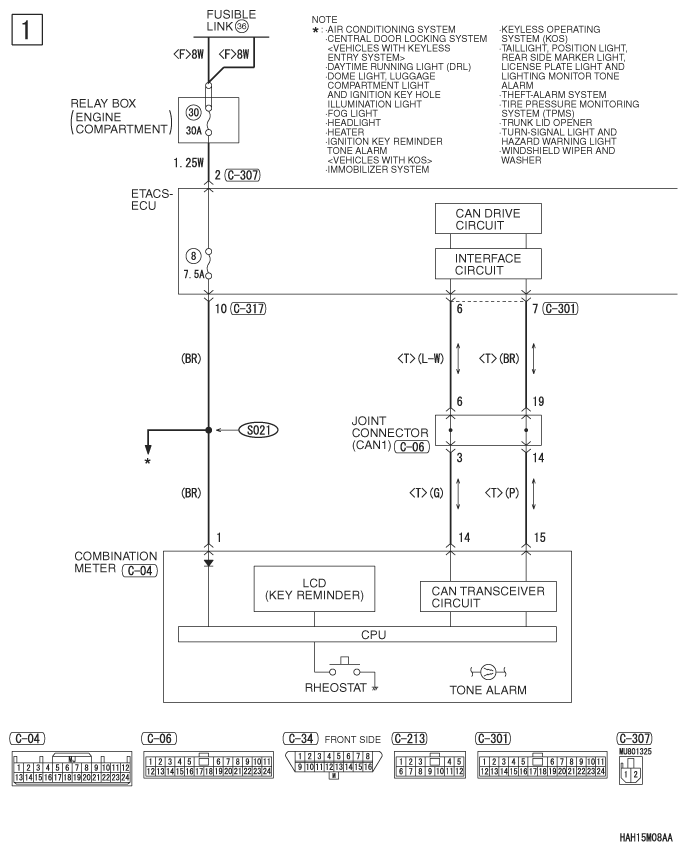

Fig 1: Ignition Key Reminder Tone Alarm (Vehicle Without KOS) - Circuit Diagram (1 Of 2)
G07546962Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

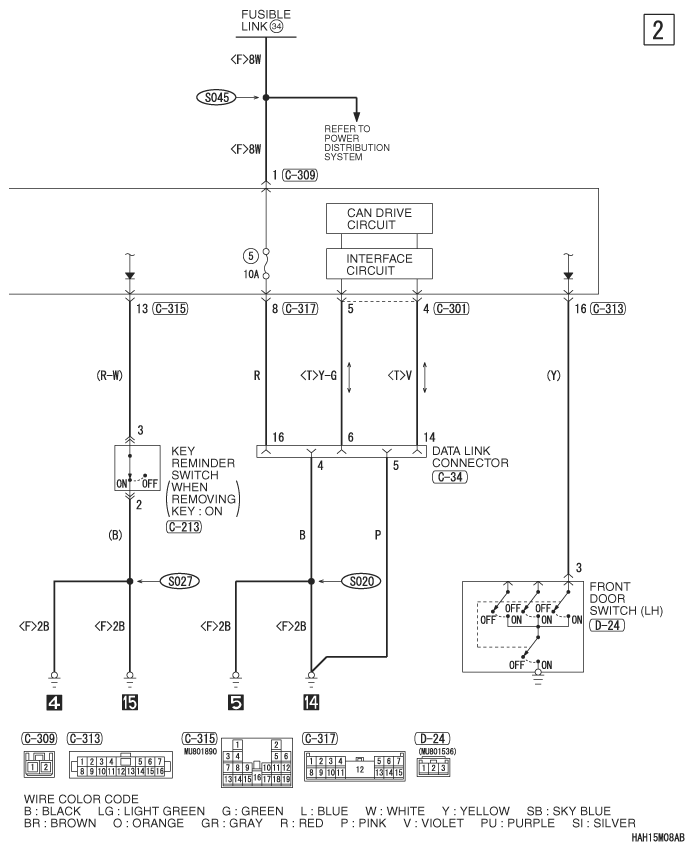

Fig 2: Ignition Key Reminder Tone Alarm (Vehicle Without KOS) - Circuit Diagram (2 Of 2)
G07546963Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
