Ignition Key Reminder Tone Alarm < Vehicle With Kos >

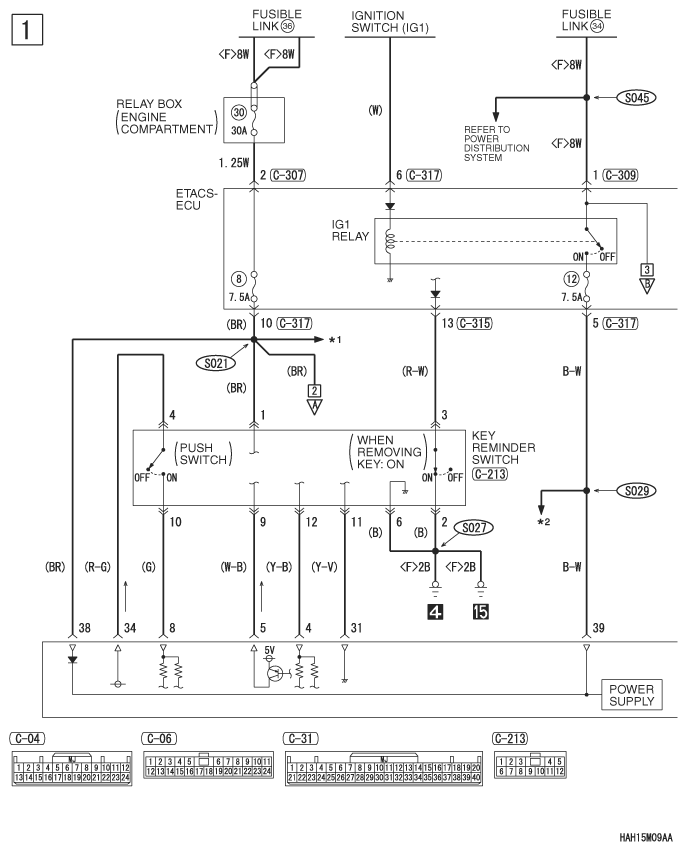

Fig 1: Ignition Key Reminder Tone Alarm (Vehicle With KOS) - Circuit Diagram (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

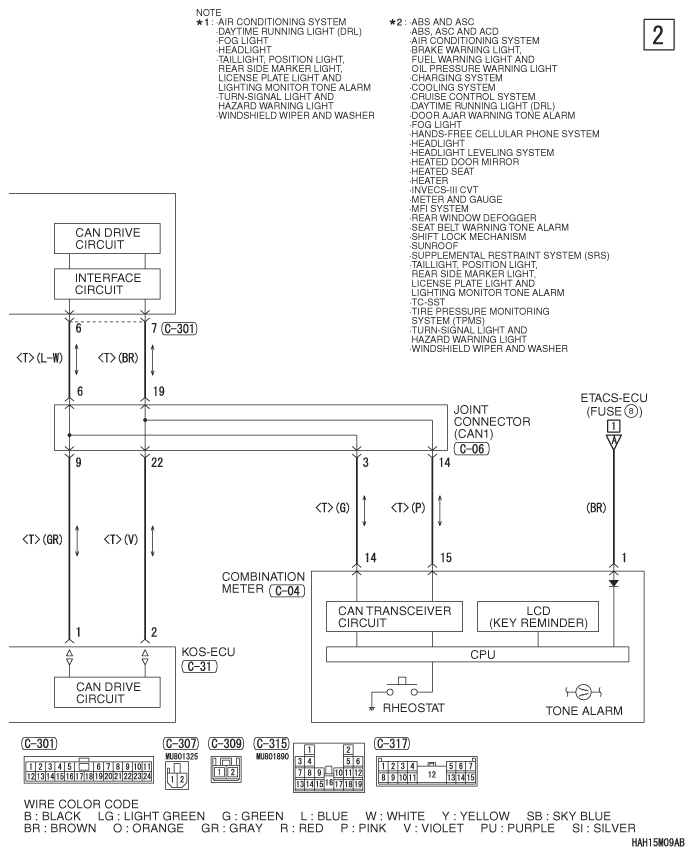

Fig 2: Ignition Key Reminder Tone Alarm (Vehicle With KOS) - Circuit Diagram (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

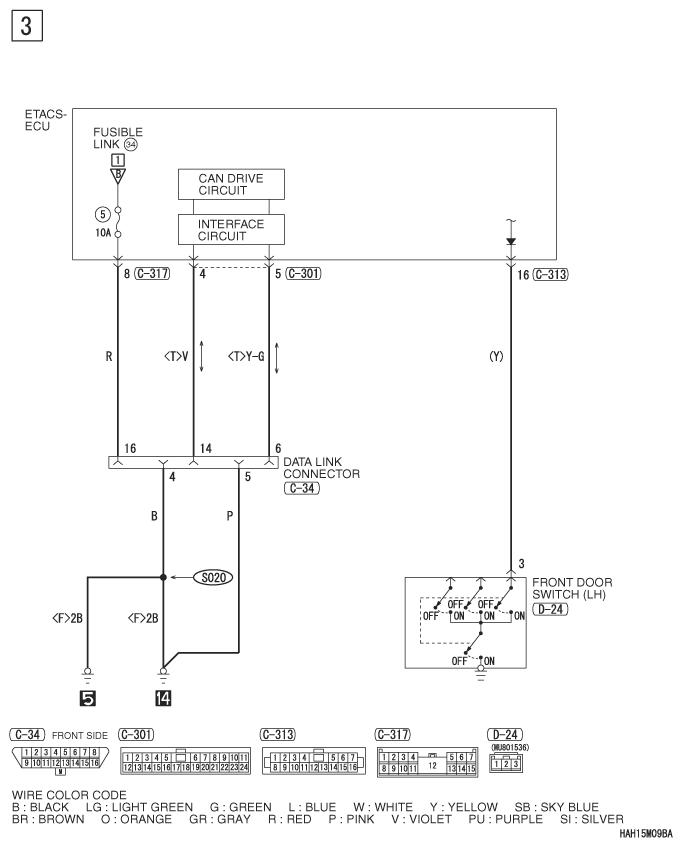

Fig 3: Ignition Key Reminder Tone Alarm (Vehicle With KOS) - Circuit Diagram (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
