Lancer ES, Standard
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams - Lancer
>>
Door Ajar Warning Tone Alarm
Door Ajar Warning Tone Alarm

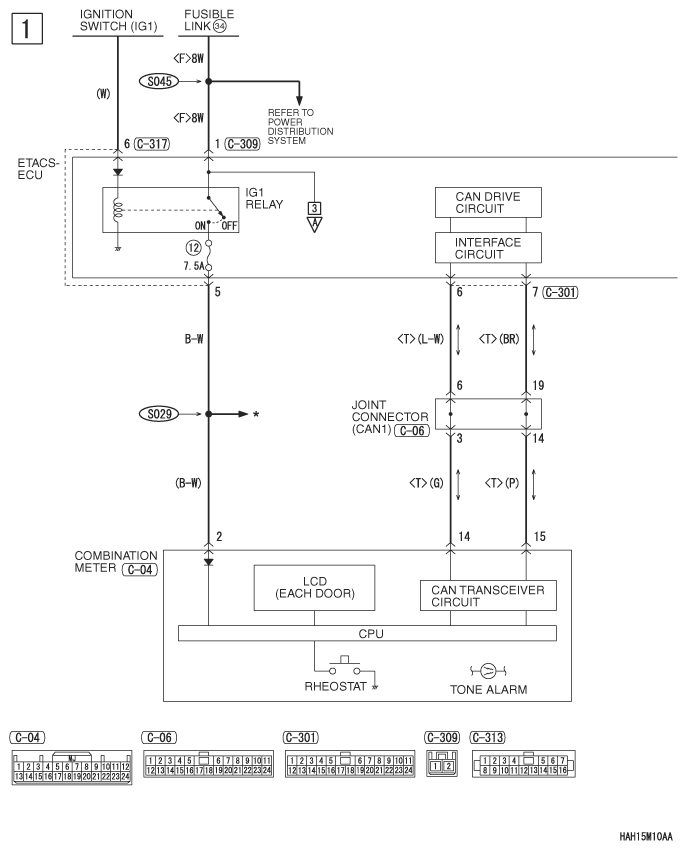

Fig 1: Door Ajar Warning Tone Alarm - Circuit Diagram (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

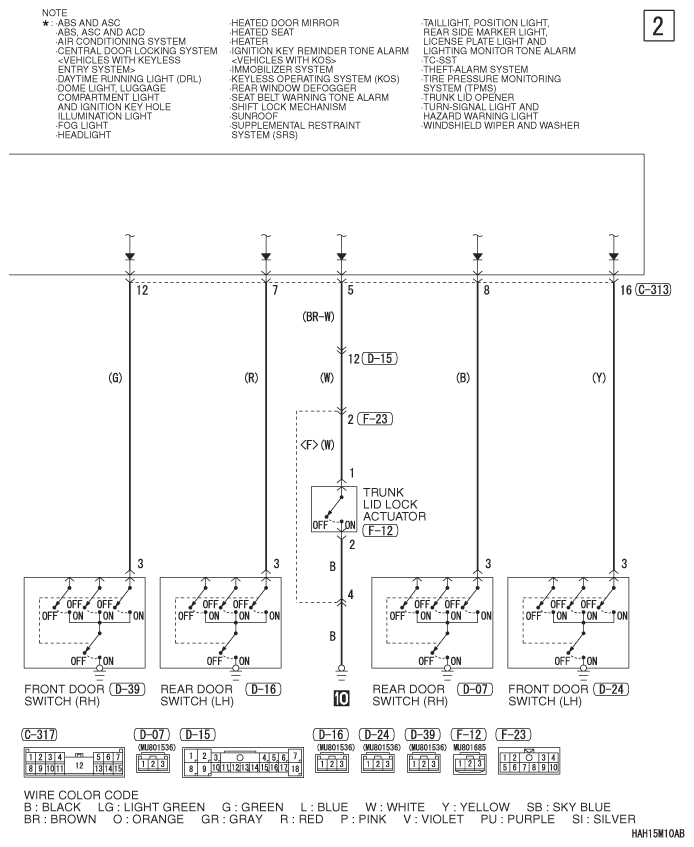

Fig 2: Door Ajar Warning Tone Alarm - Circuit Diagram (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

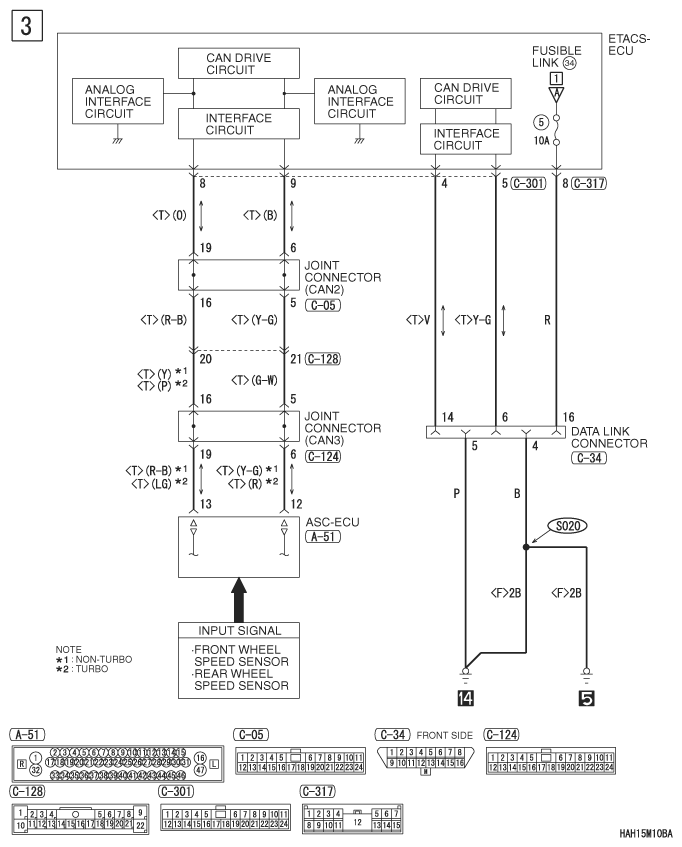

Fig 3: Door Ajar Warning Tone Alarm - Circuit Diagram (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
