Brake Warning Light, Fuel Warning Light And Oil Pressure Warning Light (Turbo)

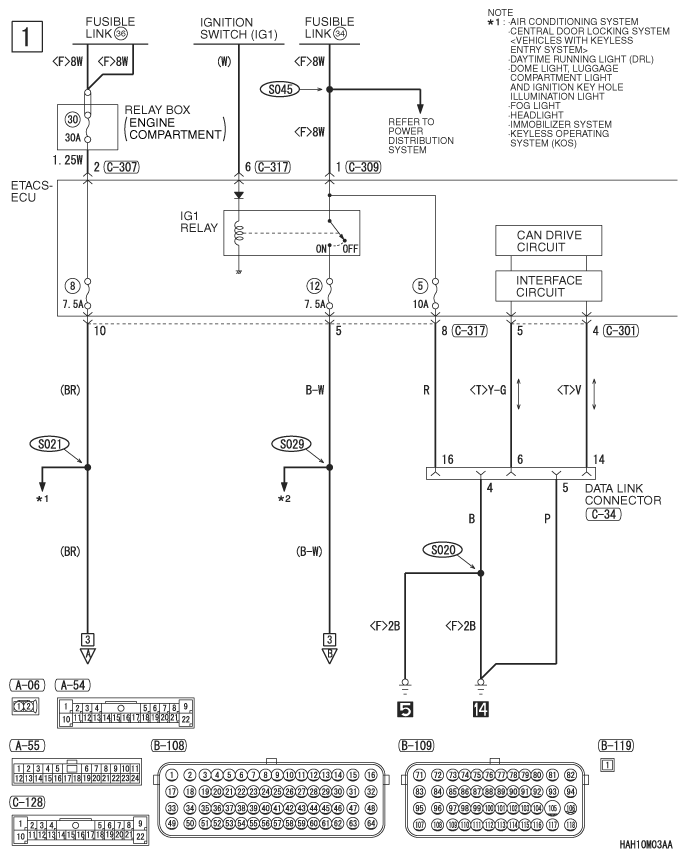

Fig 1: Brake Warning, Fuel Warning And Oil Pressure Warning Lights (Turbo) - Circuit Diagram (1 Of 3)
G07546771Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

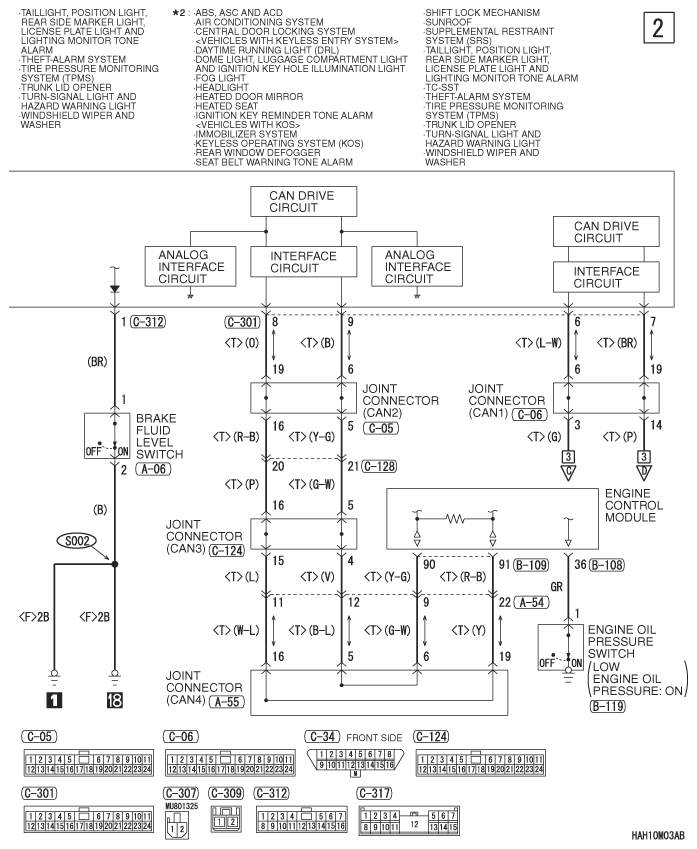

Fig 2: Brake Warning, Fuel Warning And Oil Pressure Warning Lights (Turbo) - Circuit Diagram (2 Of 3)
G07546772Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

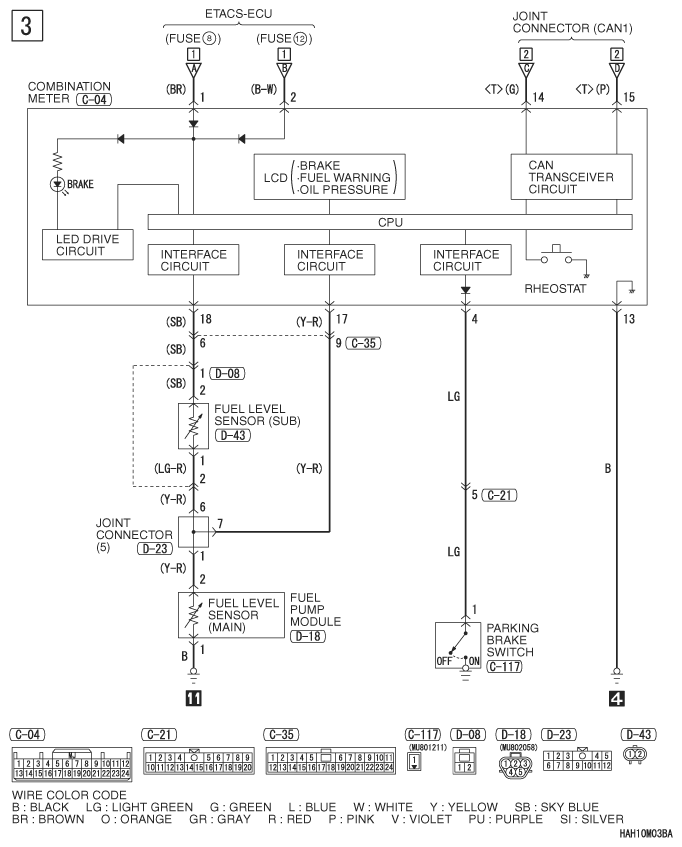

Fig 3: Brake Warning, Fuel Warning And Oil Pressure Warning Lights (Turbo) - Circuit Diagram (3 Of 3)
G07546773Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
