Inspection Procedure 1: The front dome light does not illuminate normally: Notes

CAUTION: Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

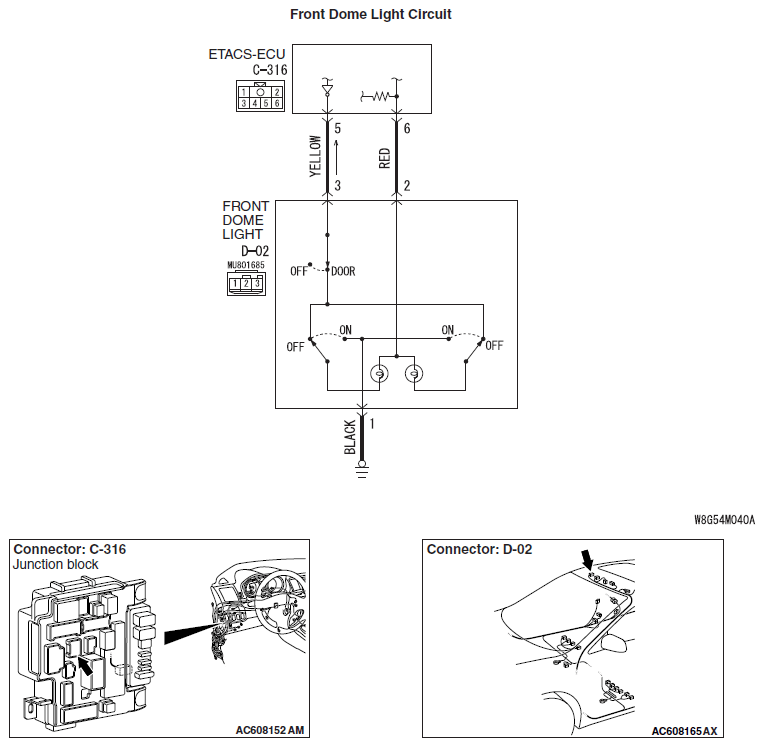

Fig 1: Front Dome Light Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
