Section 2 (Automatic Transaxle On-Vehicle Service)
>>
General Description
>>
Function Element Table <5A/T>
>>
Sectional View <4A/T>
Sectional View <4A/T>
WARNING:
This page is about a different variant/trim than selected.

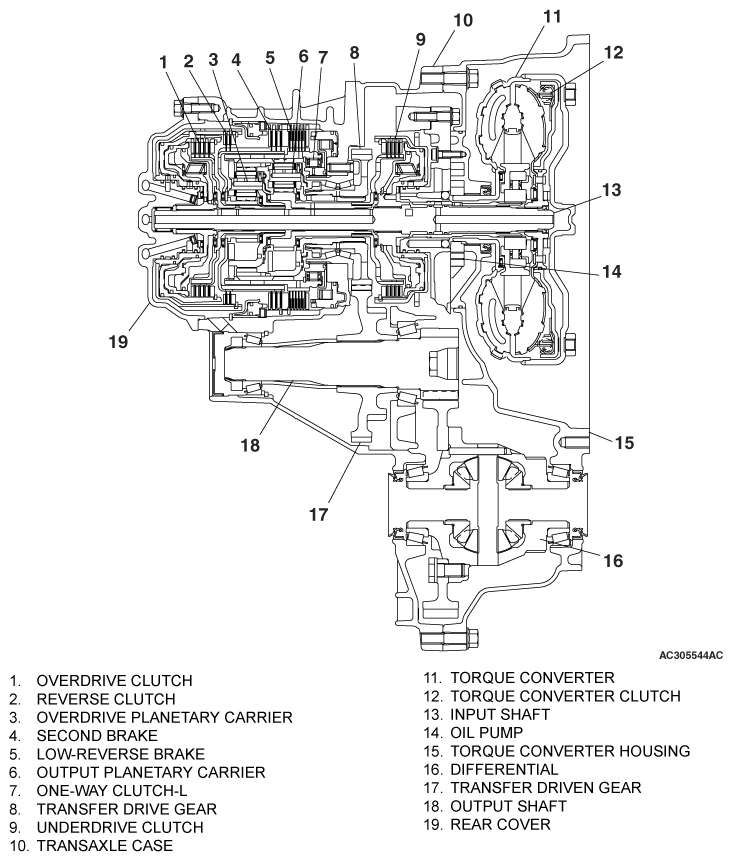

Fig 1: Sectional View Of Automatic Transaxle - 4A/T
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
