Eclipse Spyder GS, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Multi-Center Display
>>
Diagnosis
>>
Symptom Procedures
>>
INSPECTION PROCEDURE 1: The multi-center display does not Show any Information
>>
Notes
INSPECTION PROCEDURE 1: The multi-center display does not Show any Information: Notes

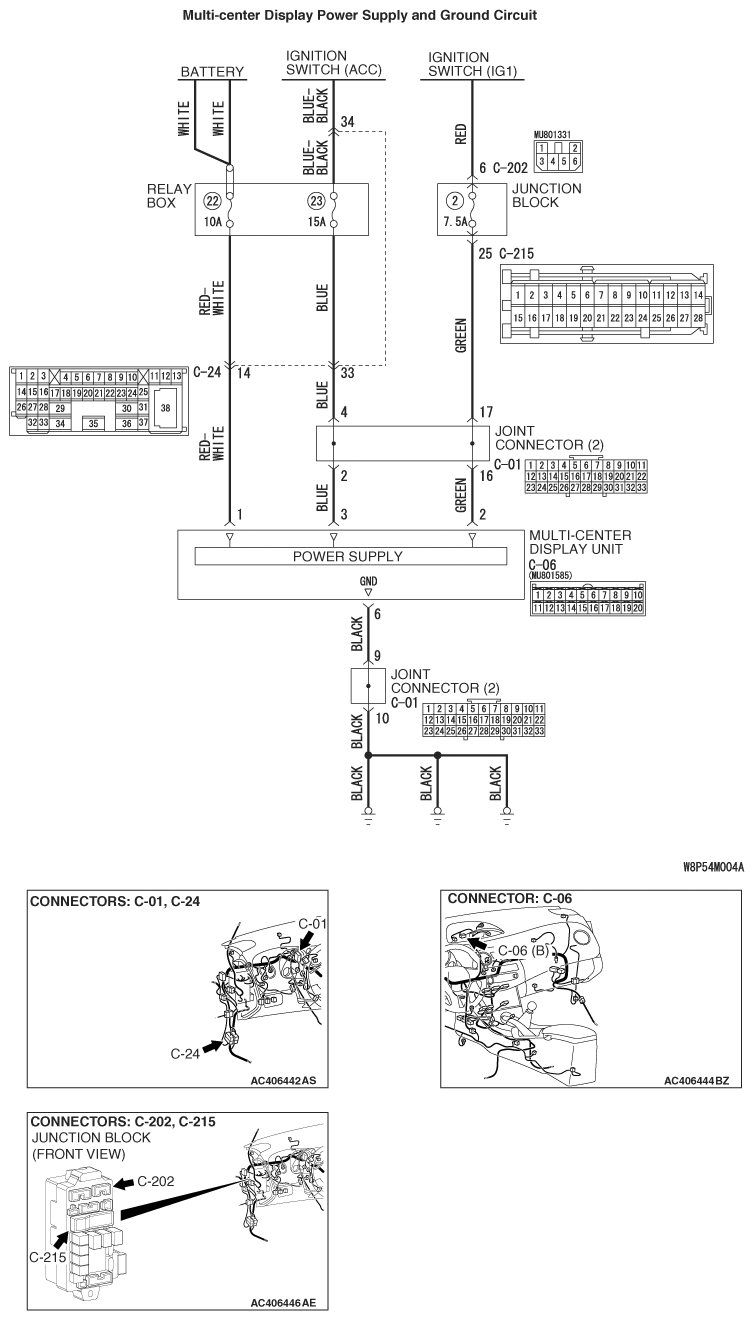

Fig 1: Multi-Center Display Power Supply And Ground Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
