INSPECTION PROCEDURE 9: Fuel gauge does not work (other meters work): Notes

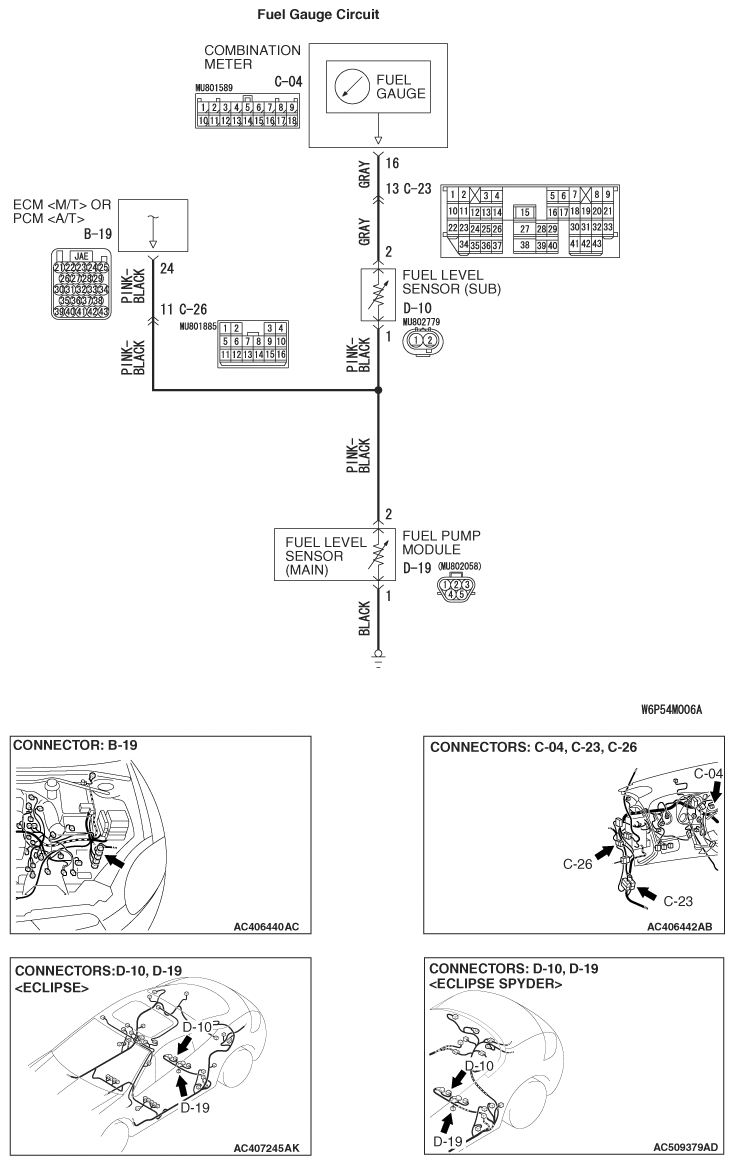

Fig 1: Fuel Gauge Circuit Diagram

G06690105

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
