Inspection Procedure 2: The Switch Position Of The Drive Mode Selector Does Not Match With The Indicator Display In The Combination Meter: Notes

WARNING: This page is about a different variant/trim than selected.

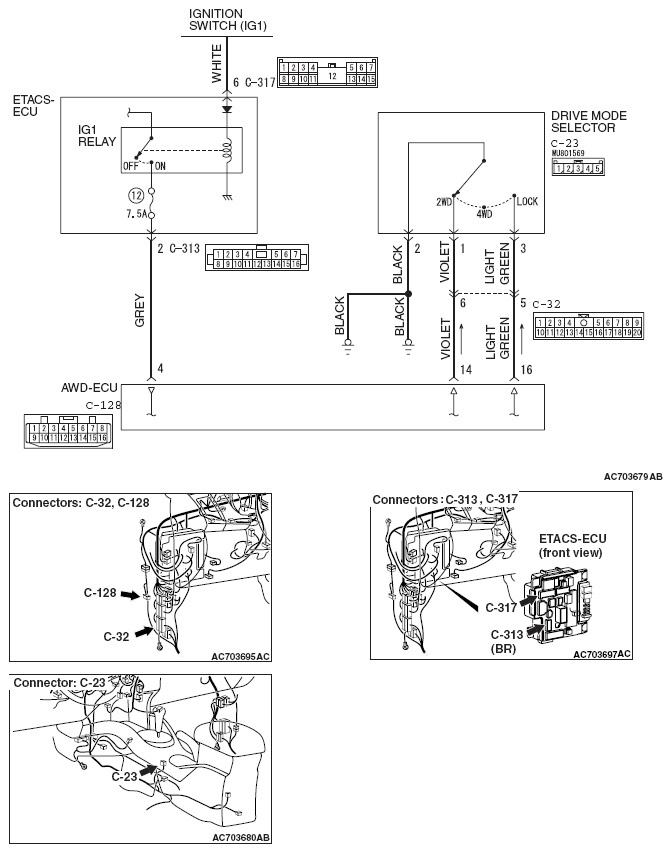

Fig 1: Electronic Control AWD System - Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
