Inspection Procedure 1: Scan Tool MB991958 Cannot Communicate With The Electronic Control AWD System: Notes

WARNING: This page is about a different variant/trim than selected.

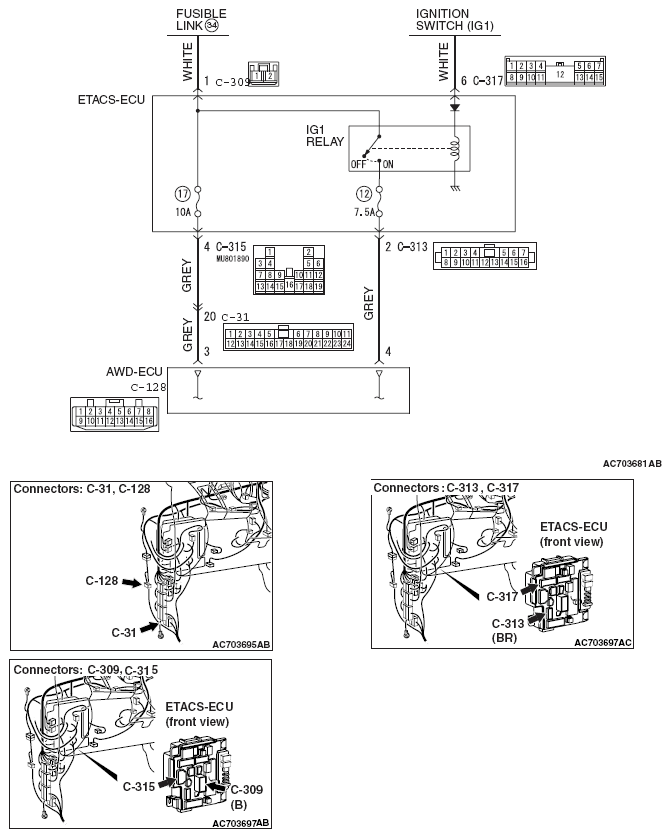

Fig 1: Electronic Control AWD System - Circuit Diagram
G05432279Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
