DTC C1456: Wiring Harness Or Coupling Coil OVERCURRENT Failure: Notes

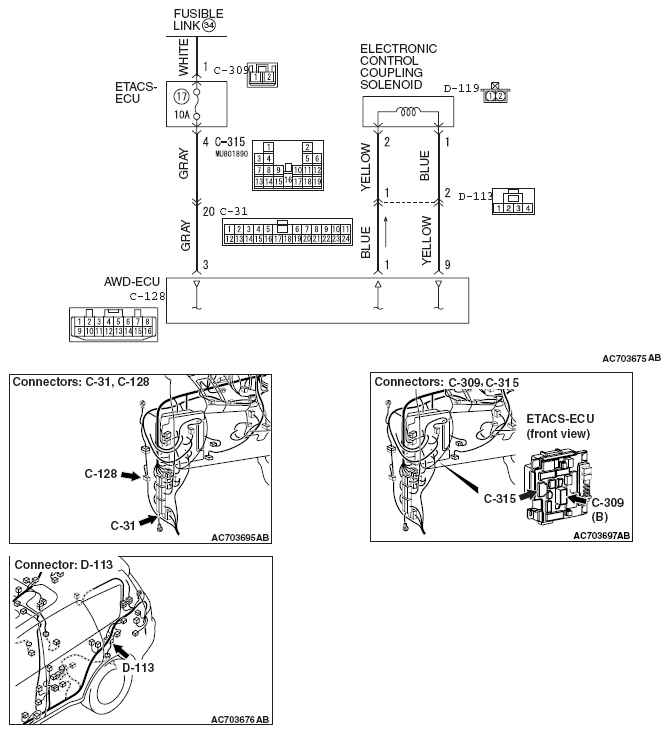

Fig 1: Electronic Control Coupling Solenoid - Circuit Diagram (Overcurrent Failure)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect DTC may be set. Prior to this diagnosis, always diagnose the CAN bus lines.
