Check At Ecu Terminals

WARNING: This page is about a different variant/trim than selected.

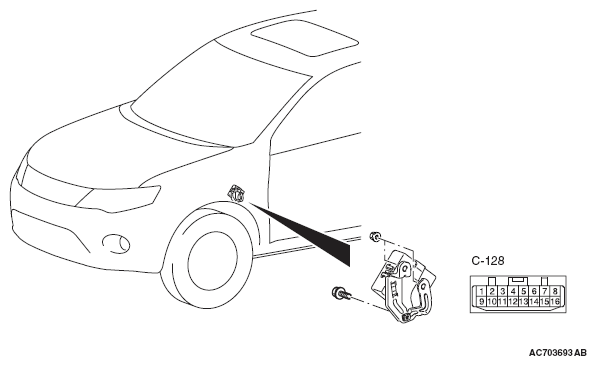

Fig 1: Identifying ECU Connector Terminals
G05432289Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ECU CONNECTOR TERMINALS REFERENCE

Terminal No. Check item Check condition Normal condition
1 Current command value of electronic control coupling solenoid
  • Drive mode selector: AWD
  • Perform a test run of the vehicle.
 0 to 5 A
3 Electronic control coupling solenoid power supply Always Battery voltage
4 Ignition power supply voltage Ignition switch: ON Battery voltage
Ignition switch: OFF 0 V
9 Electronic control coupling solenoid current monitor value
  • Drive mode selector: AWD
  • Perform a test run of the vehicle.
 0 to 5 A
10 Earth Always   0 V
14 Drive mode selector FWD signal Ignition switch: ON Drive mode selector: FWD 0 V
Drive mode selector: AWD or LOCK Battery voltage
16 Drive mode selector LOCK signal Ignition switch: ON Drive mode selector: LOCK 0 V
Drive mode selector: FWD or AWD Battery voltage
