Removal And Installation

WARNING: This page is about a different variant/trim than selected.

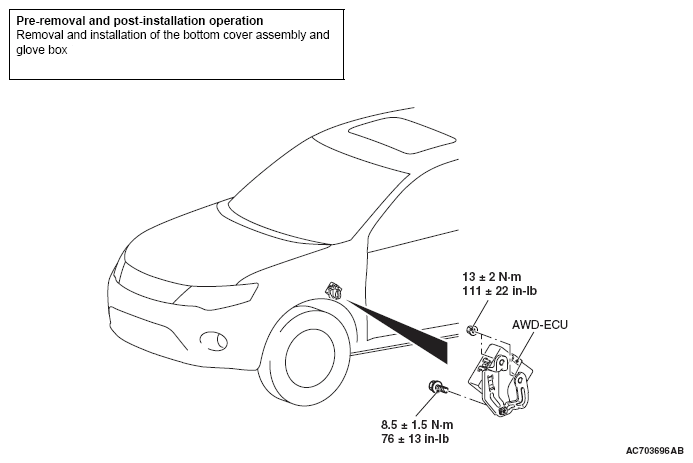

Fig 1: AWD-ECU Replacement Components With Torque Specifications
G05432292Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
