Home
>>
Mitsubishi
>>
2008
>>
Outlander LS, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Emission Control
>>
Emission Control < MFI >
>>
Evaporative Emission Canister And Fuel Tank Pressure Relief Valve
>>
Removal And Installation
Removal And Installation

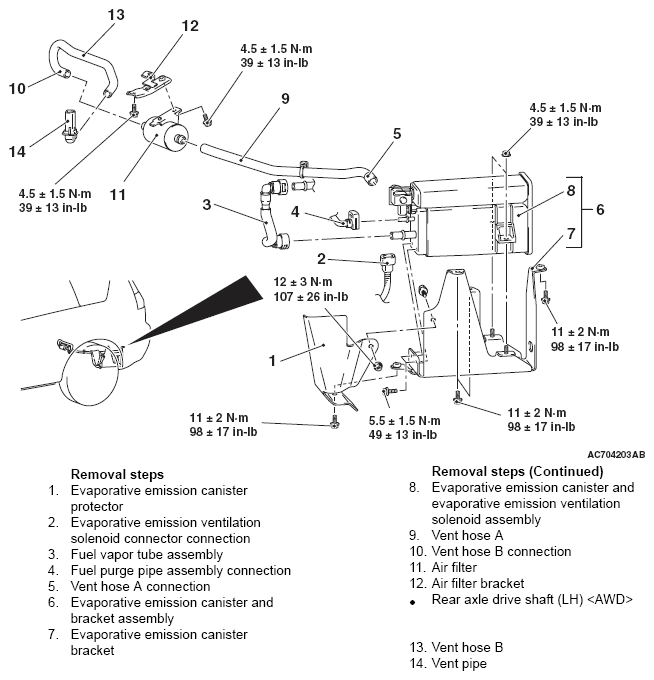

Fig 1: EVAP Canister And Fuel Tank Pressure Relief Valve Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
