Chassis Electrical - 4 Of 5
>>
Rear Display
>>
Removal And Installation
Removal And Installation

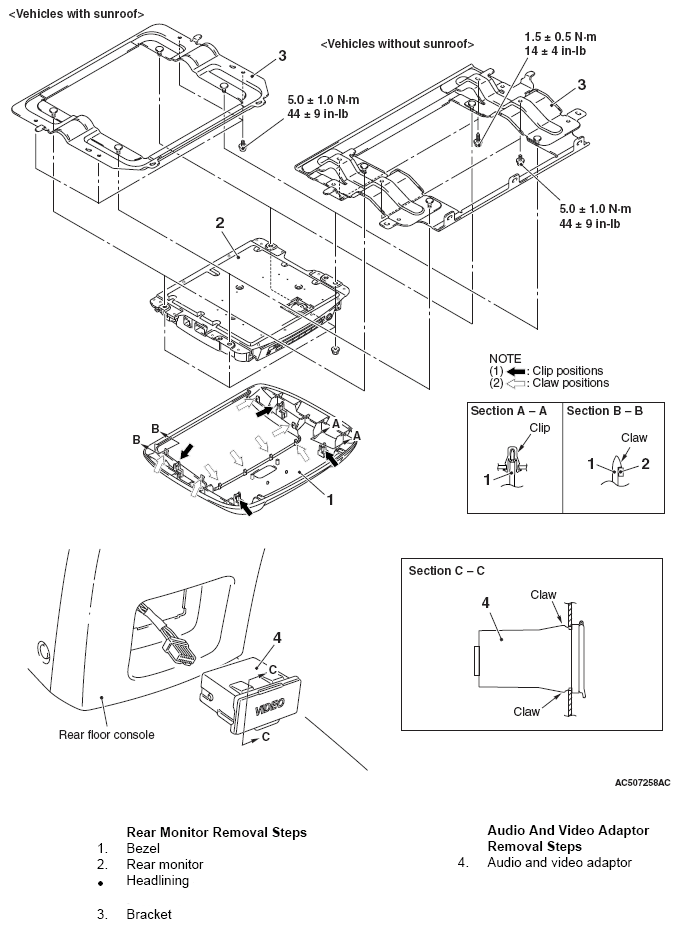

Fig 1: Main Unit Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
