Removal And Installation

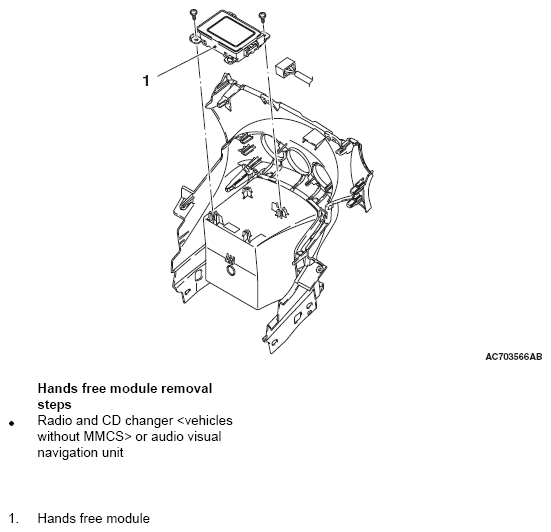

Fig 1: Identifying Hands-Free Cellular Phone System Components (1 Of 3)
G05434716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

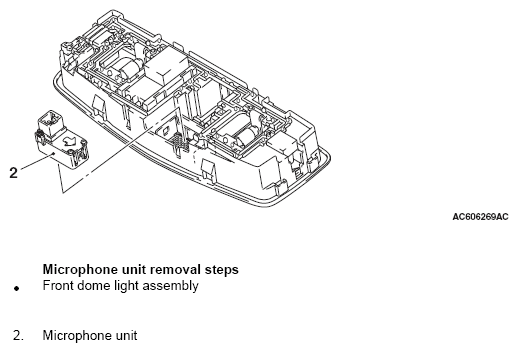

Fig 2: Identifying Hands-Free Cellular Phone System Components (2 Of 3)
G05434717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

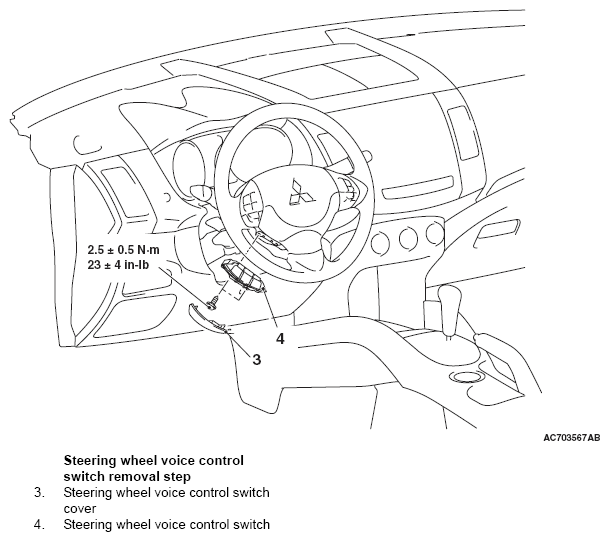

Fig 3: Hands-Free Cellular Phone System Replacement Components With Torque Specifications (3 Of 3)
G05434718Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
