Rear Window Defogger Relay Check

VOLTAGE SPECIFICATION

Battery voltage Terminal number Normal condition
At no energization 3-4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

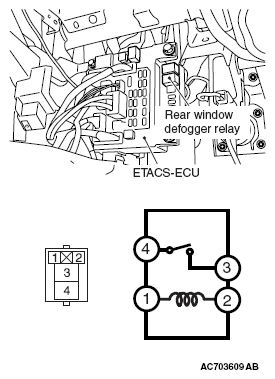

Fig 1: Identifying Rear Window Defogger Relay Terminal
G05434780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
