Comments On Trouble Symptom: Diagnosis

Required Special Tools:

• MB991223: Harness Set
• MB992006: Extra Fine Probe
• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.).
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A

1. STEP 1. ETACS-ECU coding data check.
   1. Operate scan tool MB991958 to read the ETACS-ECU option coding information (Refer to CODING LIST ).
   2. Check that the "Speaker" is set to "Premium".

   Q: Is the check result normal?

   YES:  Go to Step 2.

   NO:  Operate scan tool MB991958 to set the option coding "Speaker" to "Premium," and check the trouble symptom.

   Fig 1: Connecting Special Tools To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. STEP 2. Checking with audio speaker check.

   Perform the audio speaker check, and check which speaker does not output the sound. Refer to HARNESS CONNECTOR INSPECTION .

   Q: Is the check result normal?

   YES < normal for all >  : The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).

   NO < abnormal for all >  : Refer to HARNESS CONNECTOR INSPECTION .

   NO < only front door speaker (RH) is abnormal >  : Go to Step 3.

   NO < only front door speaker (LH) is abnormal >  : Go to  Step 9.

   NO < only rear door speaker (RH) is abnormal >  : Go to  Step 15.

   NO < only rear door speaker (LH) is abnormal >  : Go to  Step 19.

   NO < only tweeter (RH) is abnormal >  : Go to  Step 23.

   NO < only tweeter (LH) is abnormal >  : Go to  Step 27.

   NO < only subwoofer is abnormal >  : Go to  Step 31.

3. STEP 3. Check front door speaker (RH) connector E-04 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is front door speaker (RH) connector E-04 in good condition?

   YES:  Go to Step 4.

   NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

4. STEP 4. Check the front door speaker (RH).
   1. Remove the front door speaker (RH). Refer to CONNECTOR ENGAGEMENT INSPECTION .
   2. Check that the front door speaker (RH) outputs the noise when the voltage of five volts is applied to the front door speaker (RH) connector terminal.

   Q: Does the front door speaker (RH) output the noise?

   YES:  Go to Step 5.

   NO:  Replace the front door speaker (RH).

   Fig 2: Checking Front Door Speaker (RH)

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. STEP 5. Check audio amplifier connector D-126 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is audio amplifier connector D-126 in good condition?

   YES:  Go to Step 6.

   NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

6. STEP 6. Check the wiring harness between audio amplifier connector D-126 (terminal 27, 37) and front door speaker (RH) connector E-04 (terminal 1, 2).
   NOTE: Also check intermediate connectors C-20 and C-112 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-20 or C-112 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
   • Check the communication lines for open circuit and short circuit.

   Q: Is the wiring harness between audio amplifier connector D-126 (terminal 27, 37) and front door speaker (RH) connector E-04 (terminal 1, 2) in good condition?

   YES:  Go to Step 7.

   NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

7. STEP 7. Check radio and CD changer connector C-104 and audio amplifier connector C-16 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Are radio and CD changer connector C-104 and audio amplifier connector C-16 in good condition?

   YES:  Go to Step 8.

   NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

8. STEP 8. Check the wiring harness between radio and CD changer connector C-16 (terminal 26, 36) and audio amplifier connector D-127 (terminal 10, 11).
   NOTE: Also check intermediate connector C-22 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-22 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
   • Check the communication lines for open circuit and short circuit.

   Q: Is the wiring harness between radio and CD changer connector C-16 (terminal 26, 36) and audio amplifier connector D-127 (terminal 10, 11) in good condition?

   YES:  Check the trouble symptom, and go to  Step 35.

   NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

9. STEP 9. Check front door speaker (LH) connector E-17 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

   Q: Is front door speaker (LH) connector E-17 in good condition?

   YES:  Go to Step 10.

   NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

10. STEP 10. Check the front door speaker (LH).
    1. Remove the front door speaker (LH). Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the front door speaker (LH) outputs the noise when the voltage of five volts is applied to the front door speaker (LH) connector terminal.

    Q: Does the front door speaker (LH) output the noise?

    YES:  Go to Step 11.

    NO:  Replace the front door speaker (LH).

    Fig 3: Checking Front Door Speaker (LH)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. STEP 11. Check audio amplifier connector D-126 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-126 in good condition?

    YES:  Go to Step 12.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

12. STEP 12. Check the wiring harness between audio amplifier connector D-126 (terminal 28, 38) and front door speaker (LH) connector E-17 (terminal 1, 2).
    NOTE: Also check intermediate connectors C-20 and C-126 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connectors C-20 and C-126 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-126 (terminal 28, 38) and front door speaker (LH) connector E-17 (terminal 1, 2) in good condition?

    YES:  Go to Step 13.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

13. STEP 13. Check radio and CD changer connector C-16 and audio amplifier connector C-127 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is radio and CD changer connector C-16 and audio amplifier connector C-127 in good condition?

    YES:  Go to Step 14.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

14. STEP 14. Check the wiring harness between radio and CD changer connector C-16 (terminal 28, 38) and audio amplifier connector D-127 (terminal 4, 12)
    • Check the communication lines for open circuit and short circuit.
    NOTE: Also check intermediate connector C-22 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-22 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between radio and CD changer connector C-16 (terminal 28, 38) and audio amplifier connector D-127 (terminal 4, 12) in good condition?

    YES:  Check the trouble symptom, and go to  Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

15. STEP 15. Check rear door speaker (RH) connector E-10 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is rear door speaker (RH) connector E-10 in good condition?

    YES:  Go to Step 16.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

16. STEP 16. Check the rear door speaker (RH).
    1. Remove the rear door speaker (RH). Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the rear door speaker (RH) outputs the noise when the voltage of five volts is applied to the rear door speaker (RH) connector terminal.

    Q: Does the rear door speaker (RH) output the noise?

    YES:  Go to Step 17.

    NO:  Replace the rear door speaker (RH).

    Fig 4: Checking Front Door Speaker (RH)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
17. STEP 17. Check audio amplifier connector D-127 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-127 in good condition?

    YES:  Go to Step 18.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

18. STEP 18. Check the wiring harness between audio amplifier connector D-127 (terminal 2, 8) and rear door speaker (RH) connector E-10 (terminal 1, 2).
    NOTE: Also check intermediate connector D-36 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector D-36 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-127 (terminal 2, 8) and rear door speaker (RH) connector E-10 (terminal 1, 2) in good condition?

    YES:  Check the trouble symptom, and go to  Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

19. STEP 19. Check rear door speaker (LH) connector E-24 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is rear door speaker (LH) connector E-24 in good condition?

    YES:  Go to Step 20.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

20. STEP 20. Check the rear door speaker (LH).
    1. Remove the rear door speaker (LH). Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the rear door speaker (LH) outputs the noise when the voltage of five volts is applied to the rear door speaker (LH) connector terminal.

    Q: Does the rear door speaker (LH) output the noise?

    YES:  Go to Step 21.

    NO:  Replace the rear door speaker (LH).

    Fig 5: Checking Rear Door Speaker (LH)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
21. STEP 21. Check audio amplifier connector D-127 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-127 in good condition?

    YES:  Go to Step 22.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

22. STEP 22. Check the wiring harness between audio amplifier connector D-127 (terminal 1, 7) and rear door speaker (LH) connector E-24 (terminal 1, 2).
    NOTE: Also check intermediate connector D-21 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector D-21 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-127 (terminal 1, 7) and rear door speaker (LH) connector E-24 (terminal 1, 2) in good condition?

    YES:  Check the trouble symptom, and go to  Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

23. STEP 23. Check tweeter (RH) connector E-02 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is tweeter (RH) connector E-02 in good condition?

    YES:  Go to Step 24.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

24. STEP 24. Check the tweeter (RH).
    1. Remove the tweeter (RH). Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the tweeter (RH) outputs the noise when the voltage of five volts is applied to the tweeter (RH) connector terminal.

    Q: Does the tweeter (RH) output the noise?

    YES:  Go to Step 25.

    NO:  Replace the tweeter (RH).

    Fig 6: Checking Tweeter (RH)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
25. STEP 25. Check audio amplifier connector D-127 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-127 in good condition?

    YES:  Go to Step 26.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

26. STEP 26. Check the wiring harness between audio amplifier connector D-127 (terminal 5, 13) and tweeter (RH) connector E-02 (terminal 2, 1).
    NOTE: Also check intermediate connectors C-22 and C-113 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-22 or C-113 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-127 (terminal 5, 13) and tweeter (RH) connector E-02 (terminal 2, 1) in good condition?

    YES:  Check the trouble symptom, and go to  Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

27. STEP 27. Check tweeter (LH) connector E-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is tweeter (LH) connector E-14 in good condition?

    YES:  Go to Step 28.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

28. STEP 28. Check the tweeter (LH).
    1. Remove the tweeter (LH). Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the tweeter (LH) outputs the noise when five volts are applied to the tweeter (LH) connector terminal.

    Q: Does the tweeter (LH) output the noise?

    YES:  Go to Step 29.

    NO:  Replace the tweeter (LH).

    Fig 7: Checking Tweeter (LH)

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
29. STEP 29. Check audio amplifier connector D-127 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-127 in good condition?

    YES:  Go to Step 30.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

30. STEP 30. Check the wiring harness between audio amplifier connector D-127 (terminal 6, 14) and tweeter (LH) connector E-14 (terminal 2, 1).
    NOTE: Also check intermediate connectors C-22 and C-113 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector C-22 or C-113 is damaged, repair or replace the connector as described in HARNESS CONNECTOR INSPECTION .
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-127 (terminal 6, 14) and tweeter (LH) connector E-14 (terminal 2, 1) in good condition?

    YES:  Check the trouble symptom, and go to  Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

31. STEP 31. Check subwoofer connector D-15 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is subwoofer connector D-15 in good condition?

    YES:  Go to Step 32.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

32. STEP 32. Check the Subwoofer.
    1. Remove the subwoofer. Refer to FRONT OR REAR DOOR SPEAKER .
    2. Check that the subwoofer outputs the noise when five volts are applied to the subwoofer connector terminal.

    Q: Does the subwoofer output the noise?

    YES:  Go to Step 33.

    NO:  Replace the subwoofer.

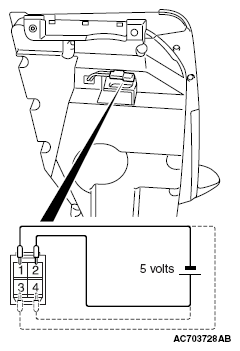

    Fig 8: Checking Subwoofer

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
33. STEP 33. Check audio amplifier connector D-126 for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Is audio amplifier connector D-126 in good condition?

    YES:  Go to Step 34.

    NO:  Repair or replace the damaged component(s). Refer to HARNESS CONNECTOR INSPECTION .

34. STEP 34. Check the wiring harness between audio amplifier connector D-126 (terminal 21, 22, 29, 30) and subwoofer connector D-15 (terminal 4, 2, 3, 1).
    • Check the communication lines for open circuit and short circuit.

    Q: Is the wiring harness between audio amplifier connector D-126 (terminal 21, 22, 29, 30) and subwoofer connector D-15 (terminal 4, 2, 3, 1) in good condition?

    YES:  Check the trouble symptom, and go to Step 35.

    NO:  The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.

35. STEP 35. Replace the audio amplifier temporarily, and check the trouble symptom.

    Replace the audio amplifier temporarily, and check that the sound is output from the speaker.

    Q: Is the check result normal?

    YES:  The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).

    NO:  Replace the radio and CD player or CD changer.
