Inspection Procedure 1: Fog lights do not illuminate normally.: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

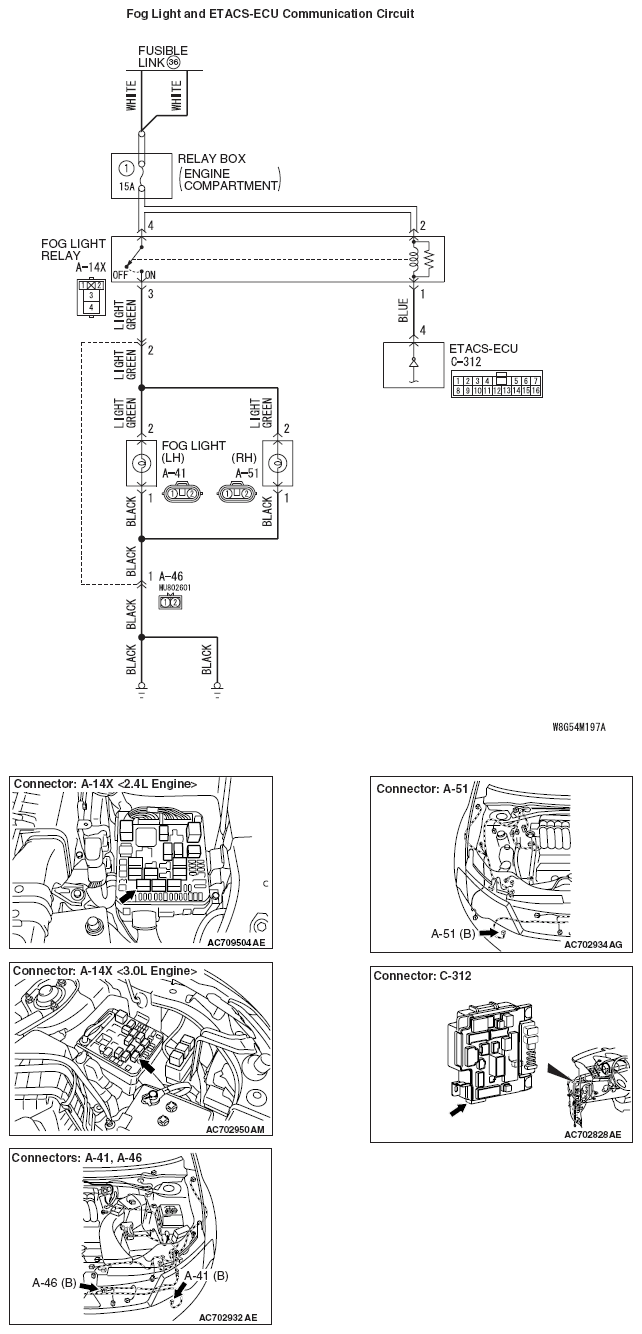

Fig 1: Fog Light And ETACS-ECU Communication Circuit Diagram
G05434418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
