INSPECTION PROCEDURE 1: Even when the equipment (power consumption is 100 W or less) is connected, the equipment cannot be used.: Diagnosis
Required Special Tools:
- MB991223: Harness set
- MB 992006: Extra fine probe
- STEP 1. Check AC inverter connector D-128 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is AC inverter connector D-128 in good condition?
YES: Go to Step 2.
NO: Repair the damaged parts.
- STEP 2. Measure the voltage at AC inverter connector D-128.
- Disconnect AC inverter connector D-128, and measure the voltage wiring harness side.
- Measure the voltage between AC inverter connector D-128 (terminal No. 1) and the body ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
Q: Does the voltage measure battery voltage?
YES: Go to Step 5.
NO: Go to Step 3.
- STEP 3. Check the wiring harness between AC inverter connector D-128 (terminal No. 1) and fusible link (34). NOTE: Before the wiring harness check, check intermediate connector C-32 and C-35, ETACS-ECU connector C-308, and then repair them if necessary.
Q: Is the wiring harness between AC inverter connector D-128 (terminal No. 1) and fusible link (34) in good condition?
YES: Go to Step 4.
NO: Repair the wiring harness between AC inverter connector D-128 and fusible link (34).
- STEP 4. Retest the system
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
NO: Carry out the troubleshooting again.
- STEP 5. Measure the voltage at AC inverter connector D-128.
- Disconnect the connector, and measure at the wiring harness side.
- Turn the ignition switch to the "ON" position.
- Measure the voltage between AC inverter connector D-128 (terminal No. 3) and the body ground.
- The voltage should measure approximately 12 volts (battery positive voltage).
Q: Does the voltage measure battery voltage?
YES: Go to Step 8.
NO: Go to Step 6.
- STEP 6. Check the wiring harness between AC inverter connector D-128 (terminal No. 3) and ETACS-ECU connector C-313 (terminal No. 2).
Q: Is the wiring harness between AC inverter connector D-128 (terminal No. 3) and ETACS-ECU connector C-313 (terminal No. 2) in good condition?
YES: Go to Step 7.
NO: Repair the wiring harness between AC inverter connector D-128 and ETACS-ECU C-313.
- STEP 7. Retest the system
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
NO: Carry out the troubleshooting again.
- STEP 8. Measure the resistance at AC inverter connector D-128.
- Disconnect the AC inverter connector D-128, and measure at the wiring harness side.
- Measure the resistance between AC inverter connector D-128 (terminal No. 7) and the body ground.
- The measured value should be continuity exists (2 Ω or less).
Q: Does the measured resistance value correspond with this range?
YES: Go to Step 11.
NO: Go to Step 9.
- STEP 9. Check the wiring harness between AC inverter connector D-128 (terminal No. 7) and the body ground.
Q: Is the wiring harness between AC inverter connector D-128 (terminal No. 7) and the body ground in good condition?
YES: Go to Step 10.
NO: Repair the wiring harness between AC inverter connector D-128 and the body ground.
- STEP 10. Retest the system
Q: Is the check result normal?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
NO: Carry out the troubleshooting again.
- STEP 11. Check AC outlet connector D-103 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is AC outlet connector D-103 in good condition?
YES: Go to Step 12.
NO: Repair the damaged parts.
- STEP 12. Measure the resistance at AC inverter connector D-128 and AC outlet connector D-103.
- Disconnect the connector, and measure at the wiring harness side.

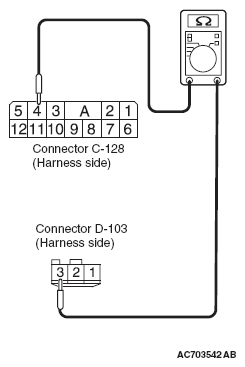

- Measure the resistance between AC inverter connector D-128 (terminal No. 4) and AC outlet connector D-103 (terminal No. 3).
- The measured value should be 2 Ω or less.

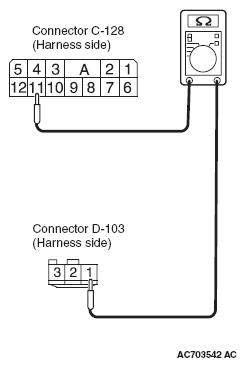

- Measure the resistance between AC inverter connector D-128 (terminal No. 11) and AC outlet connector D-103 (terminal No. 1).
- The measured value should be 2 Ω or less.
Q: Does the measured resistance value correspond with this range?
YES: Go to Step 14.
NO: Go to Step 13.
- STEP 13. Check the wiring harness between AC inverter connector D-128 (terminal No. 4, 11) and AC outlet connector D-103 (terminal No. 3, 1).
Q: Is the wiring harness between AC inverter connector D-128 (terminal No. 4, 11) and AC outlet connector D-103 (terminal No. 3, 1) in good condition?
YES: Go to Step 14.
NO: Repair the wiring harness between AC inverter connector D-128 and AC outlet connector D-103.
- STEP 14. Retest the system
Q: After the AC outlet replacement, does the AC power supply operate normally?
YES: The trouble can be an intermittent malfunction (Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS ).
NO: Replace the AC inverter.
