Inspection Procedure 2: During the conversation with the hands-free system, the speaker's voice cannot be heard by the other party.: Notes

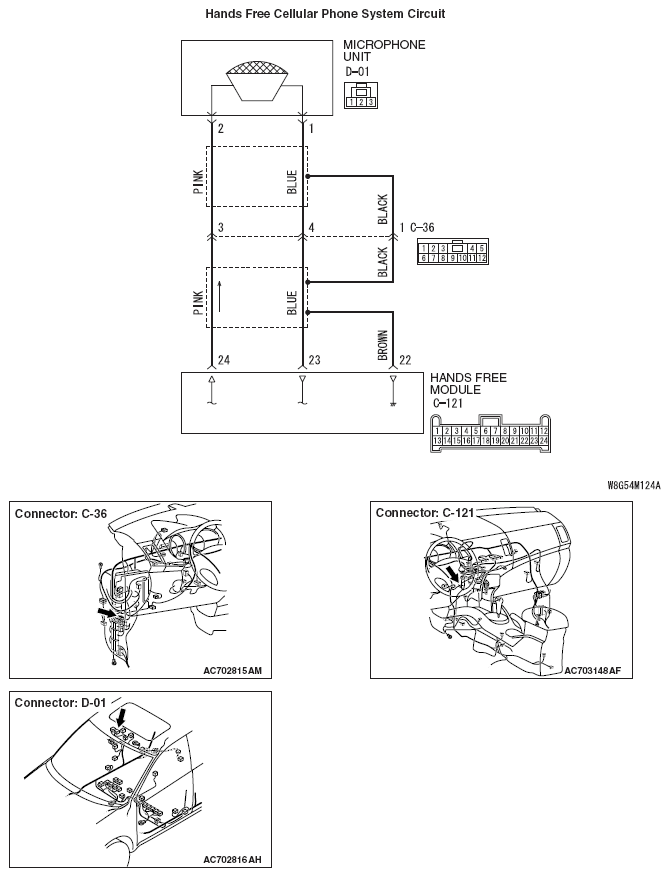

Fig 1: Hands Free Cellular Phone System Circuit Diagram
G05434705Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
