Inspection Procedure 1: A satellite radio cannot be received.: Notes

CAUTION: Before replacing the satellite radio tuner, antenna feeder cable, radio and CD changer < vehicles with radio and CD changer > or audio visual navigation unit < vehicles with MMCS >, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

Fig 1: Satellite Radio Tuner Communication Circuit < Vehicles With Radio And CD Changer > Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

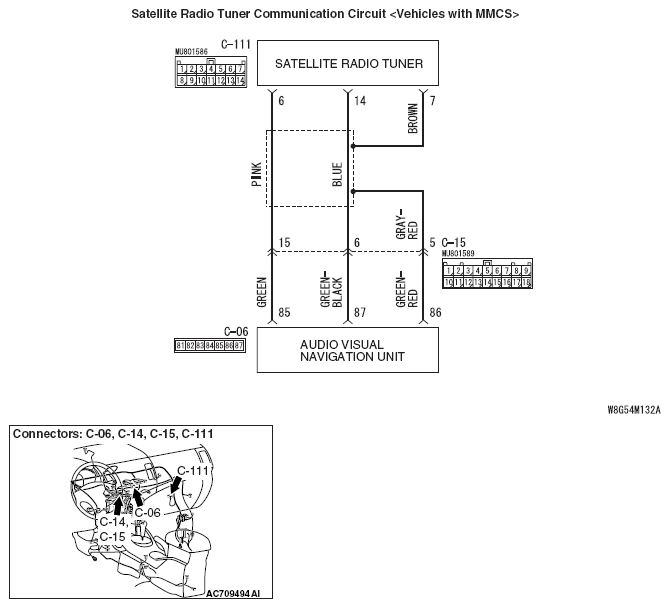

Fig 2: Satellite Radio Tuner Communication Circuit < Vehicles With MMCS > Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
