Inspection Procedure 1: The rear display unit does not display at all.: Notes

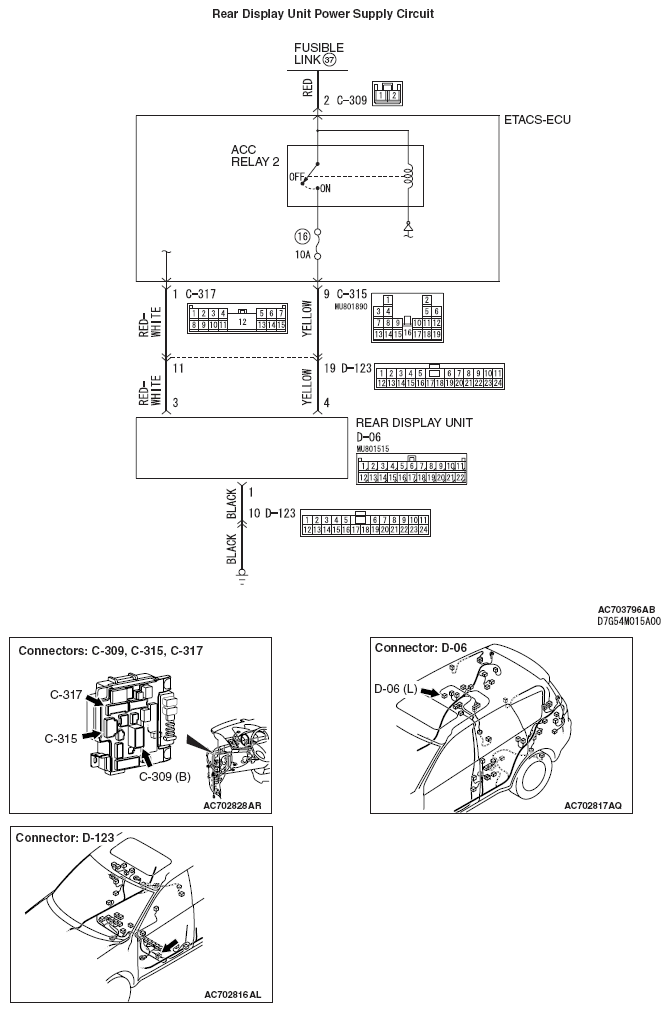

Fig 1: Rear Display Unit Power Supply Circuit Diagram

G05434766

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
