Inspection Procedure 4: The sound of external input are not played. < Vehicles without rear display unit (with audio adapter) >: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

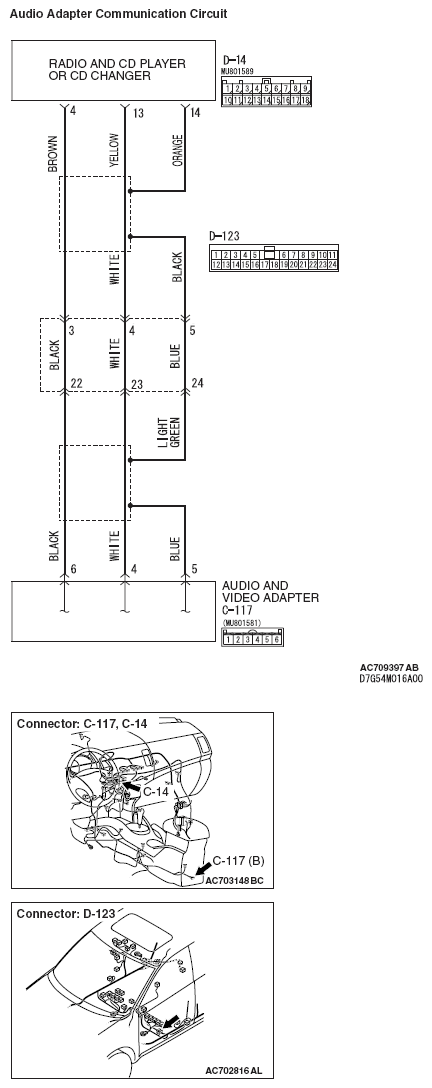

Fig 1: Audio Adapter Communication Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
