Rear Combination Light
>>
Rear Combination Light Removal And Installation
Rear Combination Light Removal And Installation

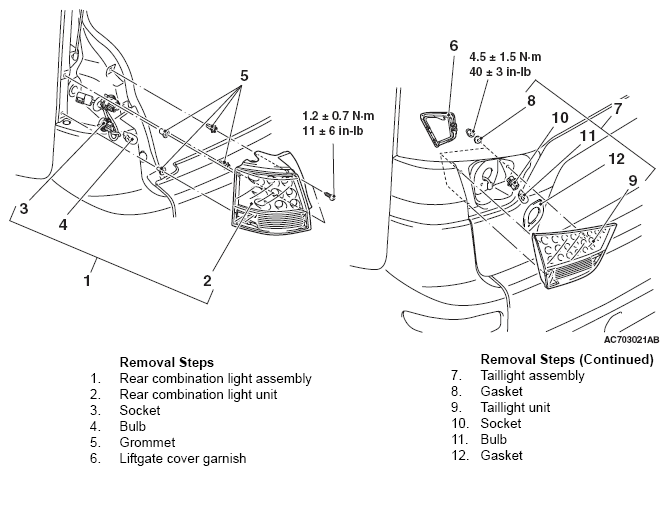

Fig 1: Rear Combination Light Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
