Inspection Procedure 2: One of the taillights does not illuminate.: Notes

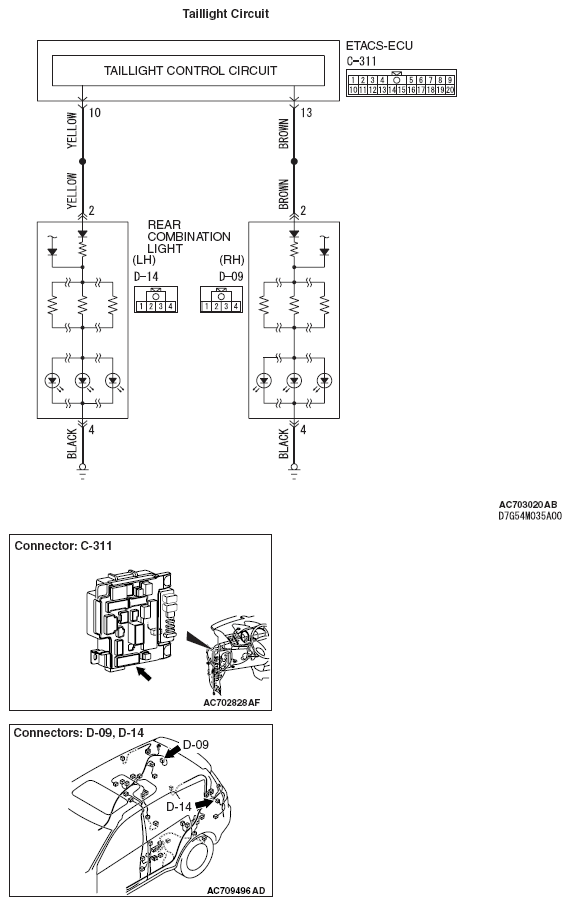

Fig 1: Taillight Circuit Diagram

G05434409

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
