Horn Relay Check

CONTINUITY SPECIFICATION

Battery voltage Tester connection Specified condition
Not energized 3 - 4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

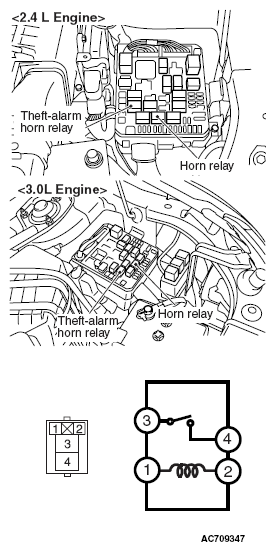

Fig 1: Identifying Horn Relay Connector Terminal
G05434466Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
