Removal And Installation: Notes

Post-installation operation

Check the beam direction of the headlight (Refer to HEADLIGHT AIMING  ).

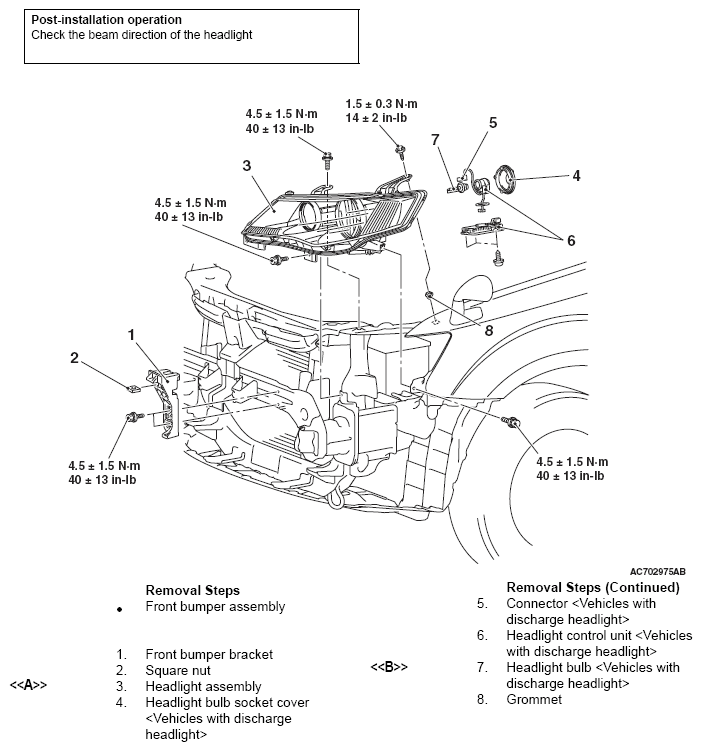

Fig 1: Headlight Replacement Components With Torque Specifications
G05434341Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
