Headlight Bulb (High-Beam) Replacement

CAUTION: Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

Disconnect the connector, and twist the headlight bulb (high-beam) to remove.

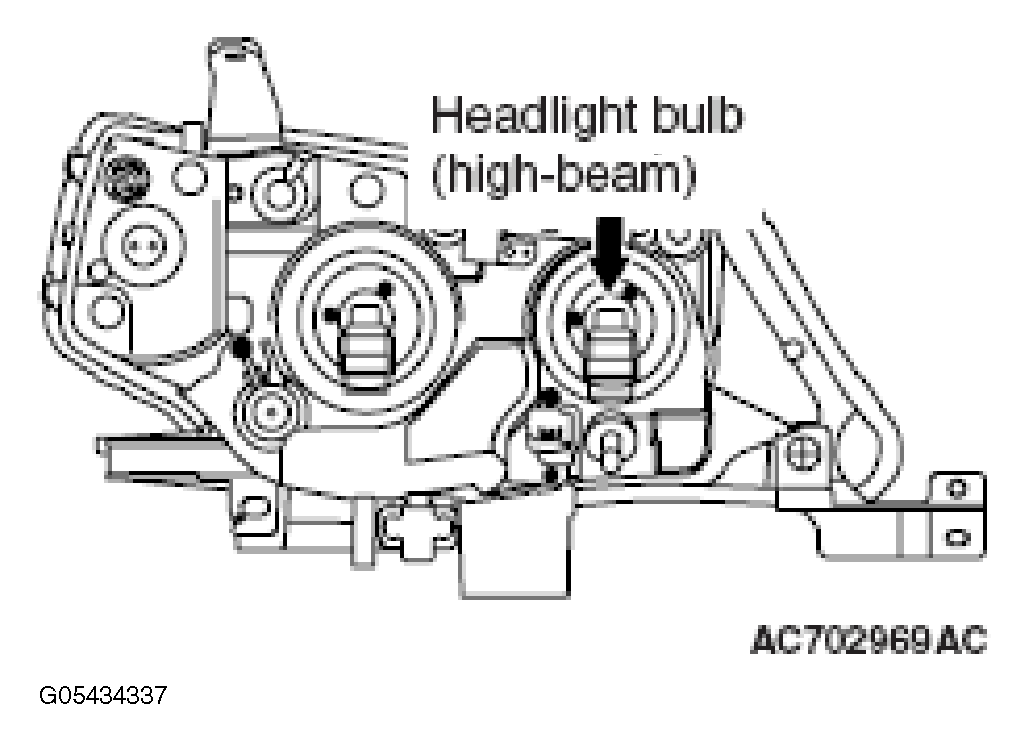

Fig 1: Locating Headlight Bulb (High-Beam)
G05434337Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
