Headlight Adjustment (Low-Beam)

NOTE: When adjusting headlight, disconnect the other headlight harness.

The low beam headlight will project on the screen upper edge of the beam (cut-off).
Turn the adjusting screws to achieve the specified low-beam cut-off location on the aiming screen.

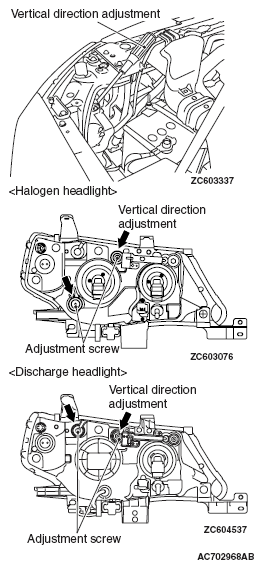

Fig 1: Locating Adjustment Screws
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Standard value:

(Vertical direction) Horizontal line (H) ± 50.5 mm (± 2.0 inches) (0.38 degrees angle)

(Horizontal direction): ± 126.4 mm (± 5.0 inches) (± 0.95 degrees angle) from the axis, which is 266.1 mm (10.5 inches) (2 degrees angle) rightward from the vertical line (V)

CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens deformation.

NOTE: High-beam pattern should be correct when the low-beams are adjusted properly.

Fig 2: Headlight Aiming Adjustment Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
