Headlight Relay (High) Check

BATTERY VOLTAGE CHART

Battery voltage Terminal number Normal conditions
Not energized 3-4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

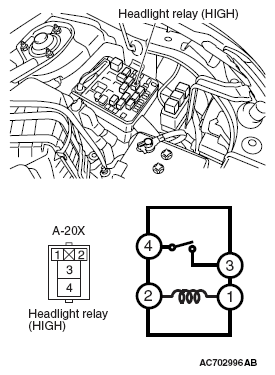

Fig 1: Headlight Relay (High) Circuit
G05434345Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
