DTC B16A5: Turn-signal light (RH) short circuit: Notes

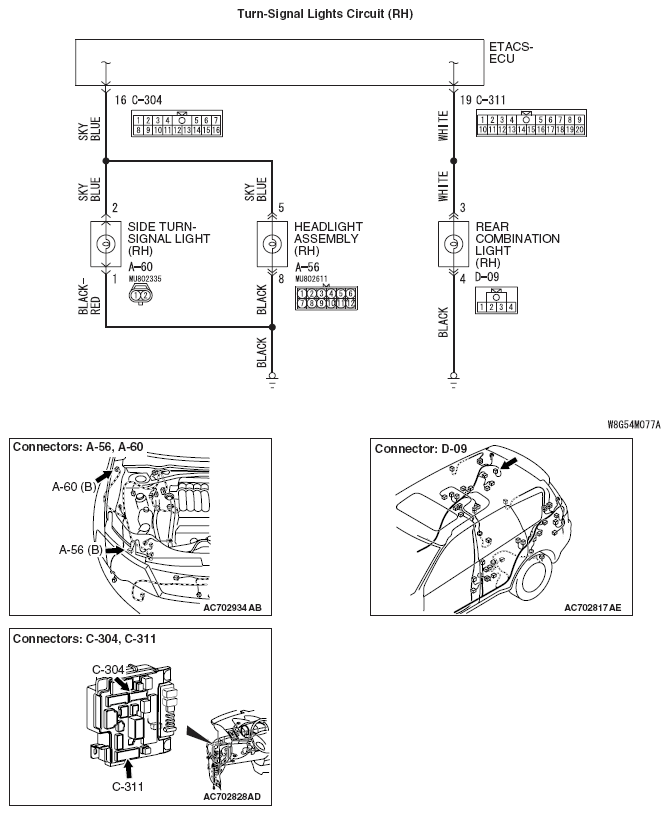

Fig 1: Turn-Signal Lights Circuit (RH) Diagram

G05434302

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
