DTC B16A3: Turn-signal light (LH) short circuit: Notes

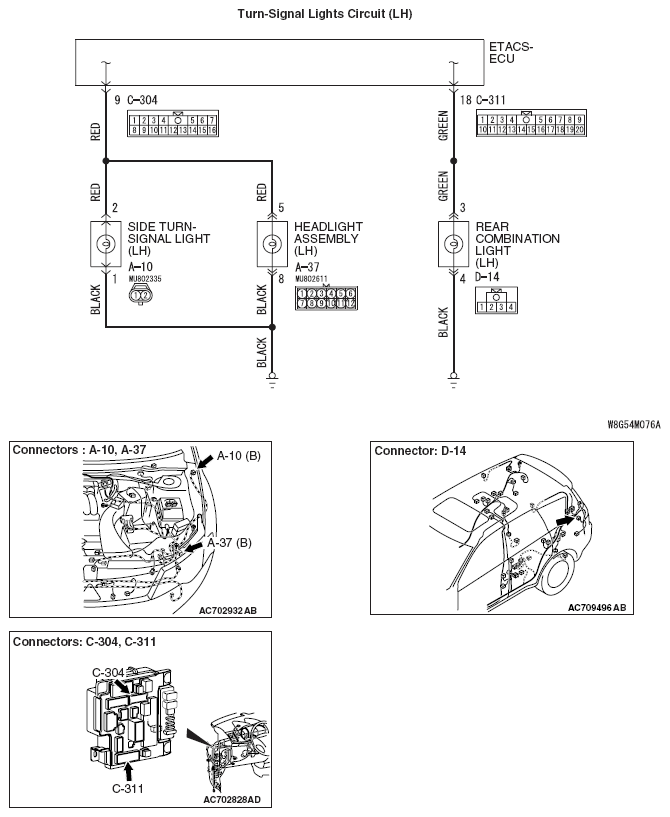

Fig 1: Turn-Signal Lights Circuit (LH) Diagram

G05434295

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
