Inspection Procedure 4: The headlight automatic leveling warning is not displayed.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

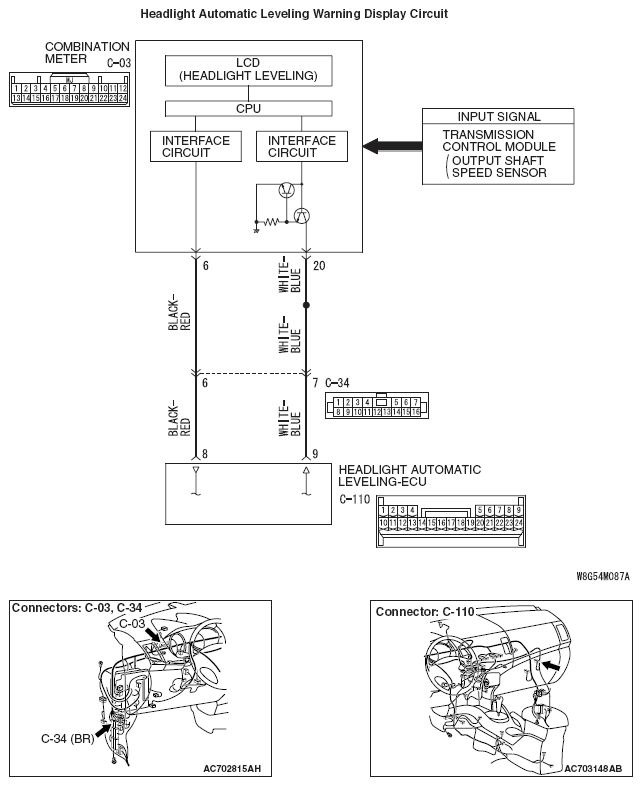

Fig 1: Headlight Automatic Leveling Warning Display Circuit Diagram
G05434379Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
