Inspection Procedure 3: One of the automatic leveling does not work.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

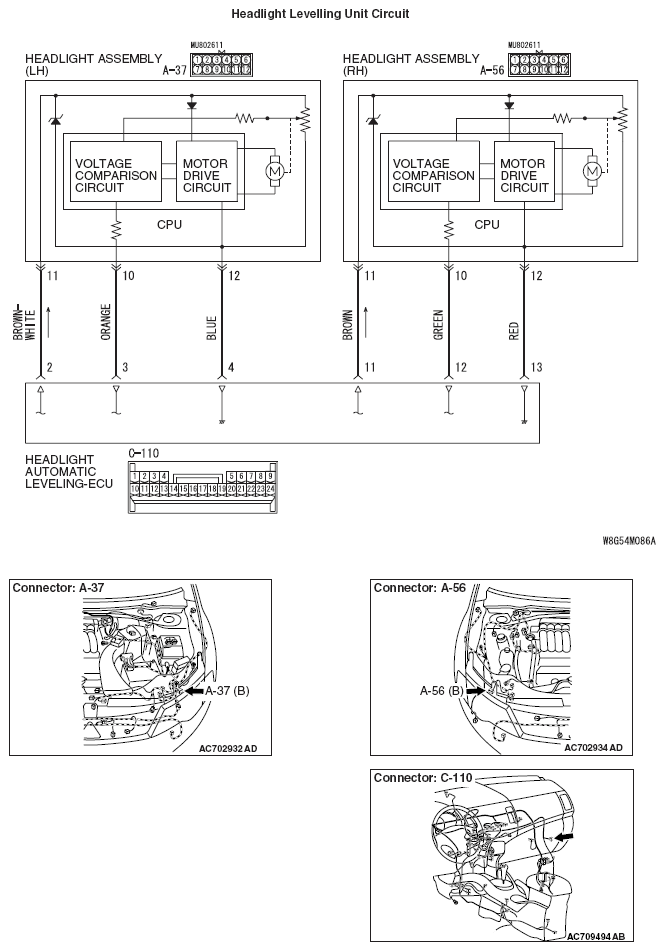

Fig 1: Headlight Levelling Unit Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
