Inspection Procedure 2: Neither right nor left automatic leveling operates.: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

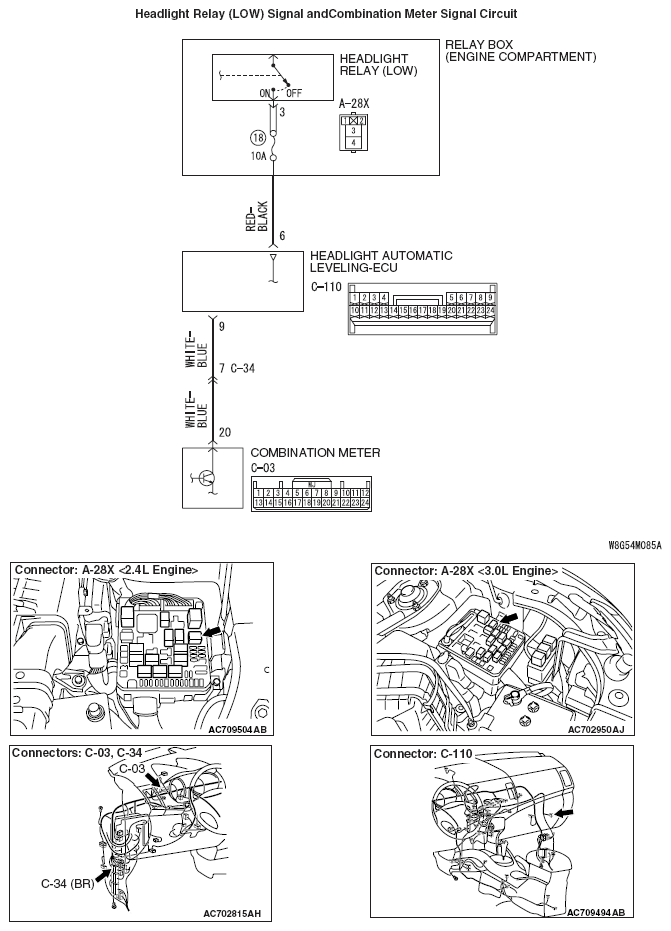

Fig 1: Headlight Relay (LOW) Signal And Combination Meter Signal Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
