DTC 24: Pitch angle abnormality: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

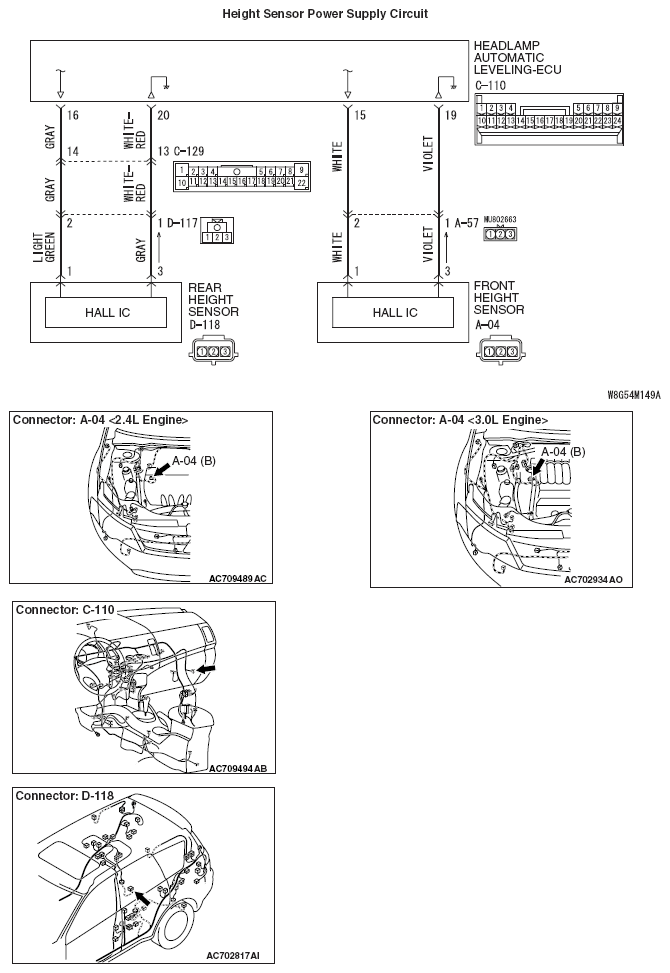

Fig 1: Height Sensor Power Supply Circuit Diagram
G05434368Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
