Code No. 31 Leveling unit abnormality: Notes

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

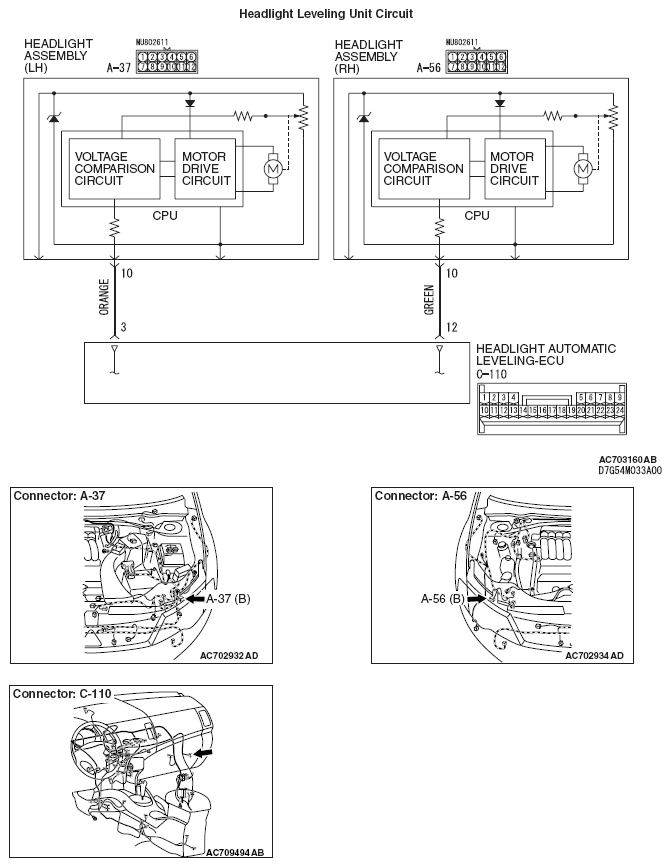

Fig 1: Headlight Leveling Unit Circuit Diagram
G05434370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
