Special Tools

SPECIAL TOOLS CHART

Tool	Tool number and name	Supersession	Application
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Test harness LED harness LED harness adaptor Probe	General service tools	Continuity check and voltage measurement at harness wire or connector Connector pin contact pressure inspection Power circuit inspection Power circuit inspection Commercial tester connection
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991529 Diagnostic trouble code check harness	Tool not necessary if the scan tool (M.U.T.-III) is available	Leveling motor drive test
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991658 Test harness set	Tool not available	Height sensor check

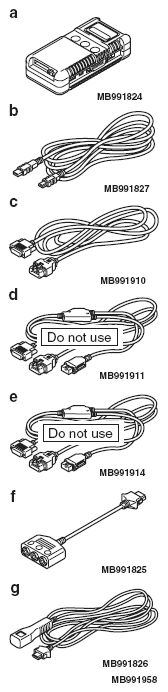

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.). M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: M.U.T.-III main harness B (MB991911) should be used. M.U.T.-III main harness A and C should not be used for this vehicle. Diagnostic code, service data and actuator test check.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.	MB992006 Extra fine probe	-	Continuity check and voltage measurement at harness wire or connector.
