Removal And Installation

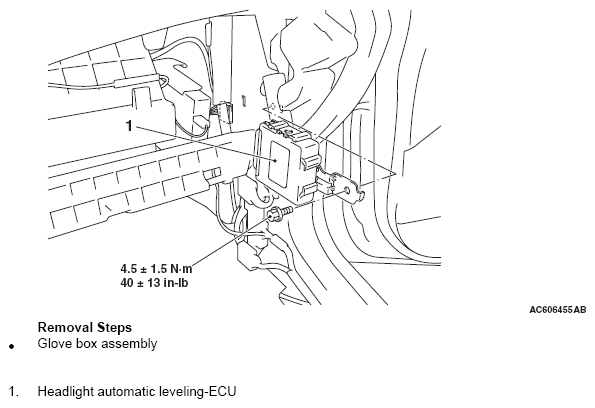

Fig 1: Headlight Automatic Levelling-ECU With Torque Specifications
G05434384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
