Fog Light Relay Check

INSPECTION CHART

Battery voltage Terminal number Normal condition
Not energized 3 - 4 No continuity
With current supply [terminal 1 (+), terminal 2 (-)] Continuity exists (2 Ω or less)

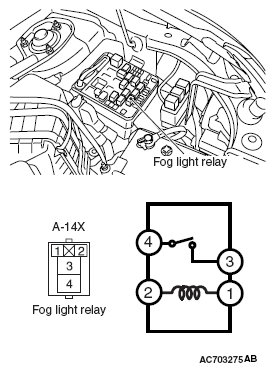

Fig 1: Fog Light Relay Circuit
G05434433Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
