Inspection Procedure 2: The right or left fog light does not illuminate.: Notes

CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

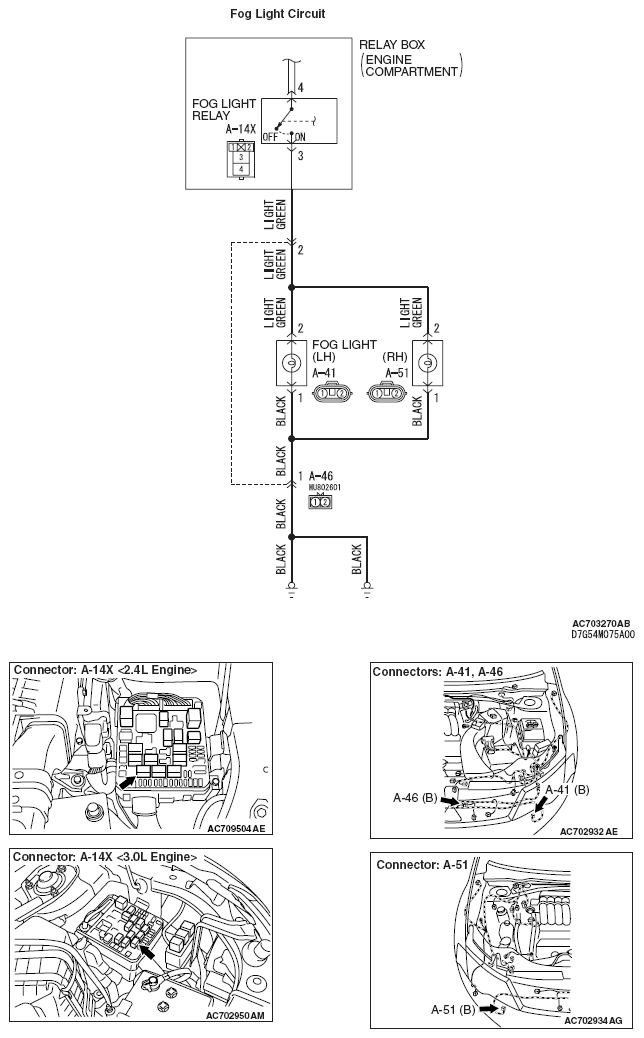

Fig 1: Fog Light Circuit Diagram
G05434421Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
