Inspection Procedure 4: The foot light does not illuminate normally.: Notes

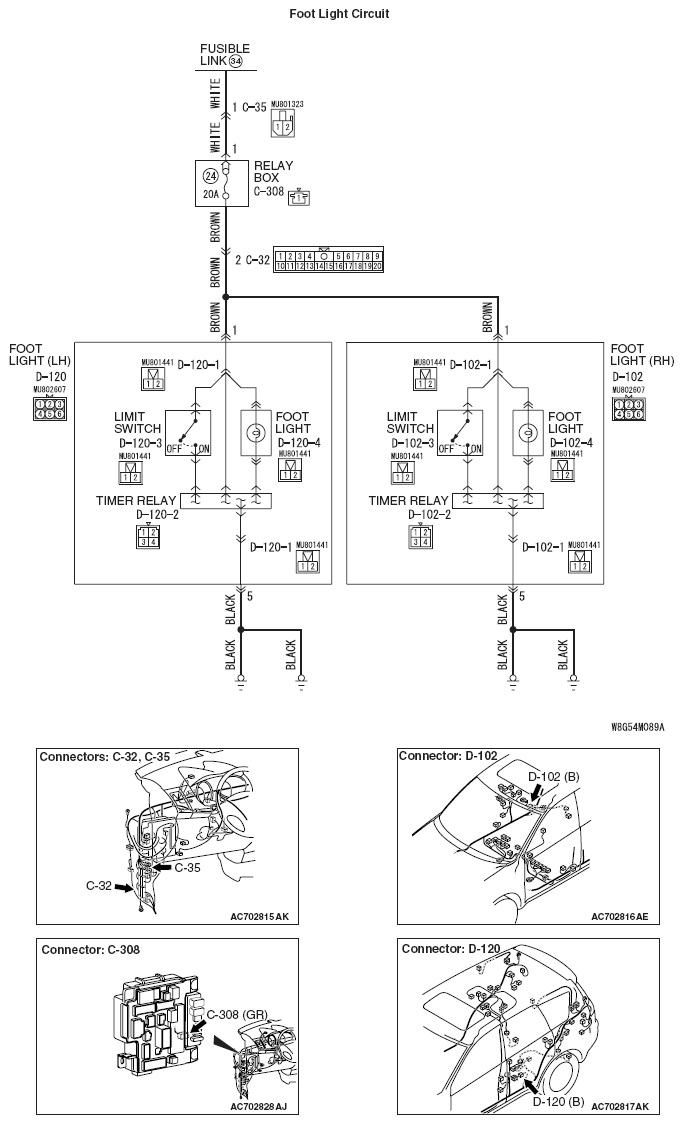

Fig 1: Foot Light Circuit Diagram

G05434452

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
