Inspection Procedure 3: The luggage compartment light does not illuminate normally.: Notes

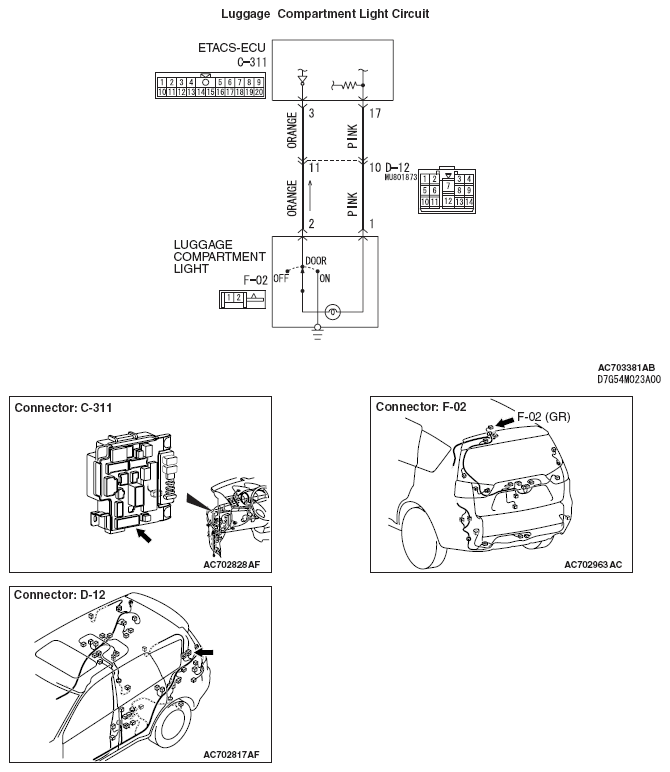

Fig 1: Luggage Compartment Light Circuit Diagram

G05434450

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
