DAYTIME RUNNING LIGHT < Vehicles with discharge headlight >
>>
Removal And Installation < Vehicles With Discharge Headlight >
Removal And Installation < Vehicles With Discharge Headlight >

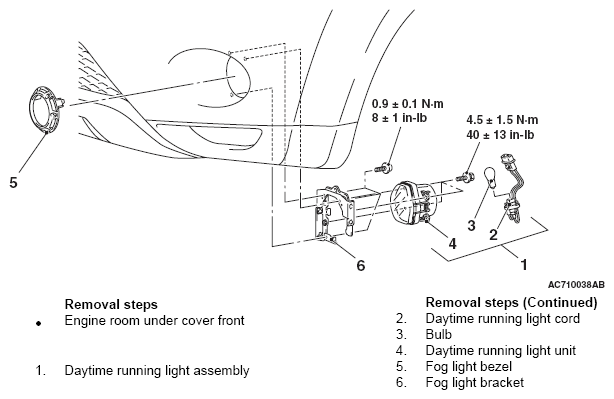

Fig 1: Daytime Running Light Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
