Removal And Installation

CAUTION:

To remove the driver air bag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE(S) AND CLOCK SPRING .
When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point (Refer to STEERING WHEEL SENSOR CALIBRATION ) < Vehicles with ASC >.

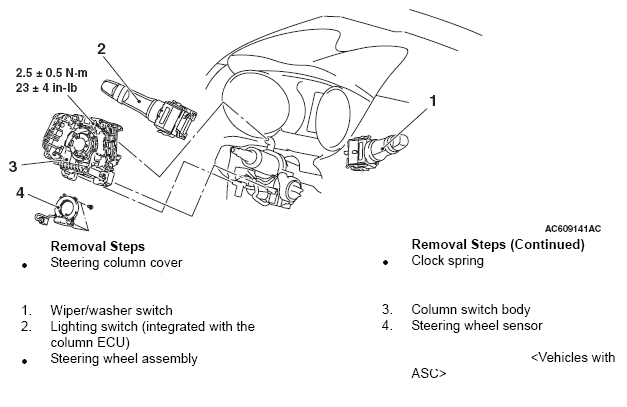

Fig 1: Column Switch Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
