General Information

The plug-in type accessory socket has been installed for the convenient use of accessories.

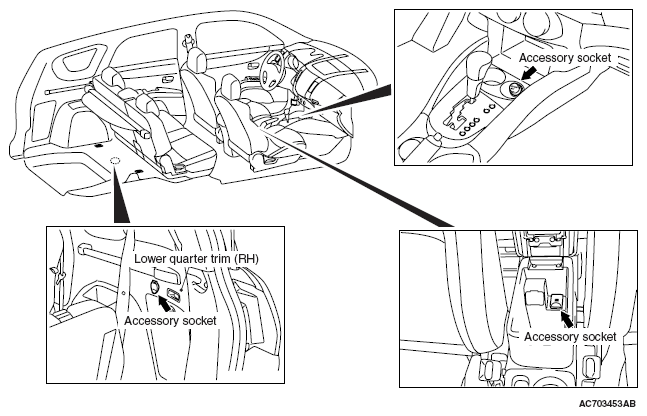

Fig 1: Identifying Accessory Socket Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• Accessory sockets have been added to the front floor console. if so equipped rear floor console and lower quarter trim (RH).
• The maximum load is 120 W when a single accessory socket is used. When three accessory sockets are used simultaneously, the combined maximum load for three sockets is 120 W.
