INSPECTION PROCEDURE 1: Even when the equipment (power consumption is 100 W or less) is connected, the equipment cannot be used.: Notes

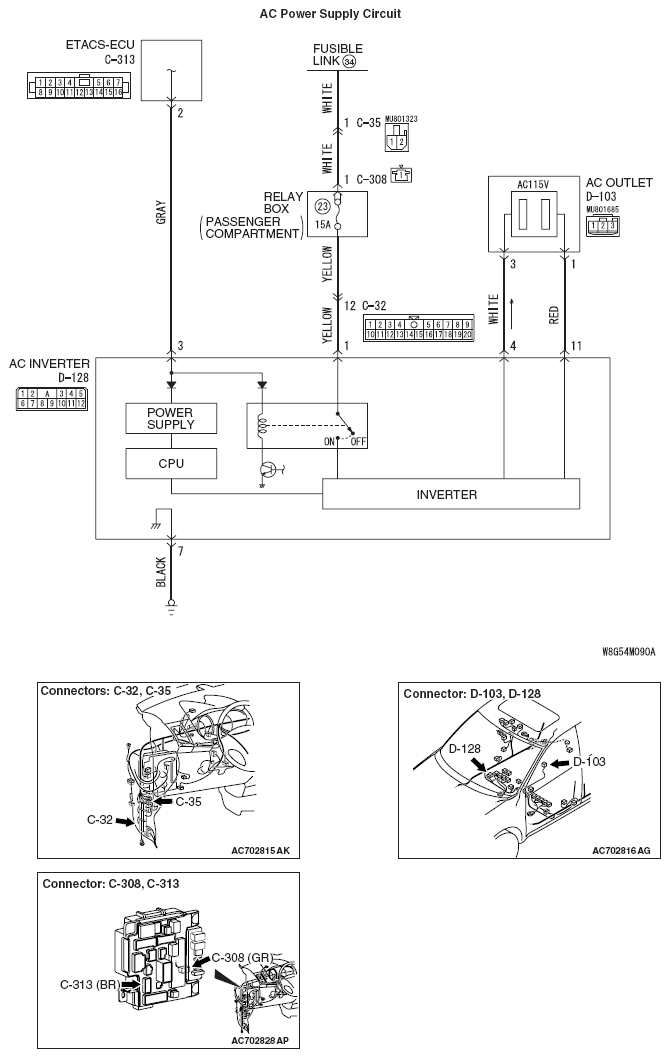

Fig 1: AC Power Supply Circuit Diagram
G05434475Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
