Removal And Installation

CAUTION: For the removal of the seat belt with pre-tensioner, refer to SERVICE PRECAUTIONS . For removal of the seat belt with pre-tensioner, refer to SEAT BELTS WITH PRE-TENSIONER .

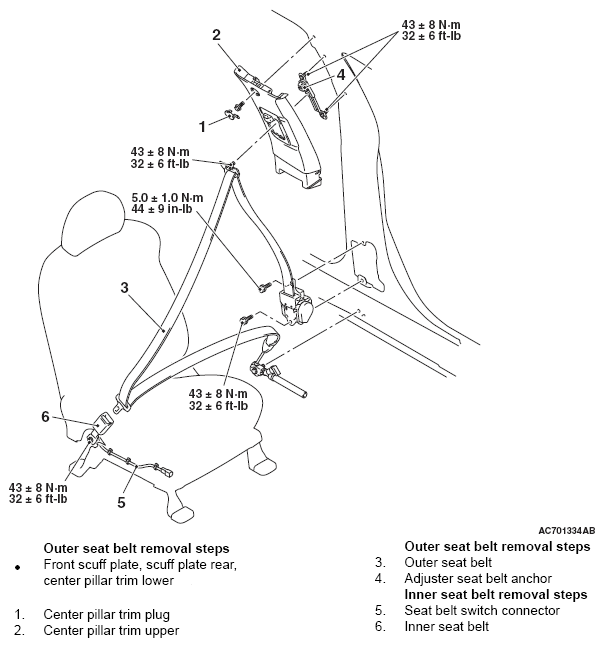

Fig 1: Front Seat Belt Replacement Components With Torque Specifications
G05433492Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
