Mitsubishi
>>
2008
>>
Outlander LS, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Interior
>>
Seat Assembly
>>
Removal And Installation
Removal And Installation

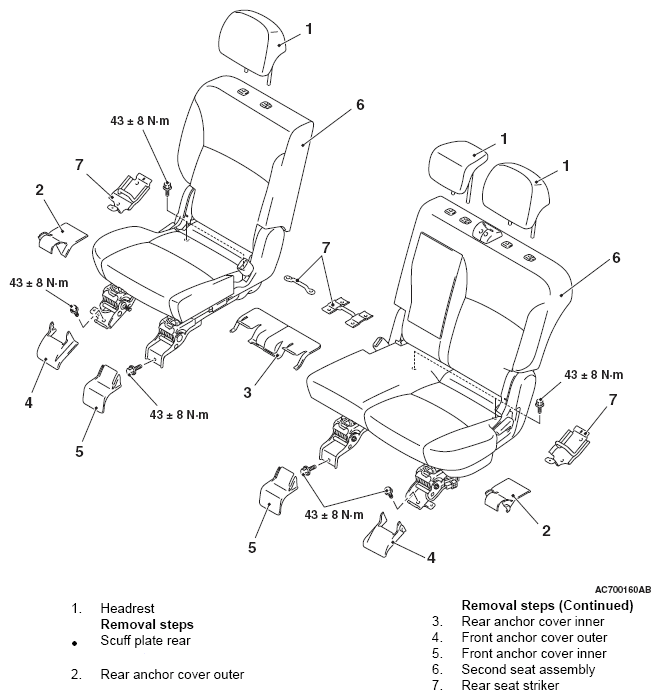

Fig 1: Identifying Seat Assembly Remove/Install Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
